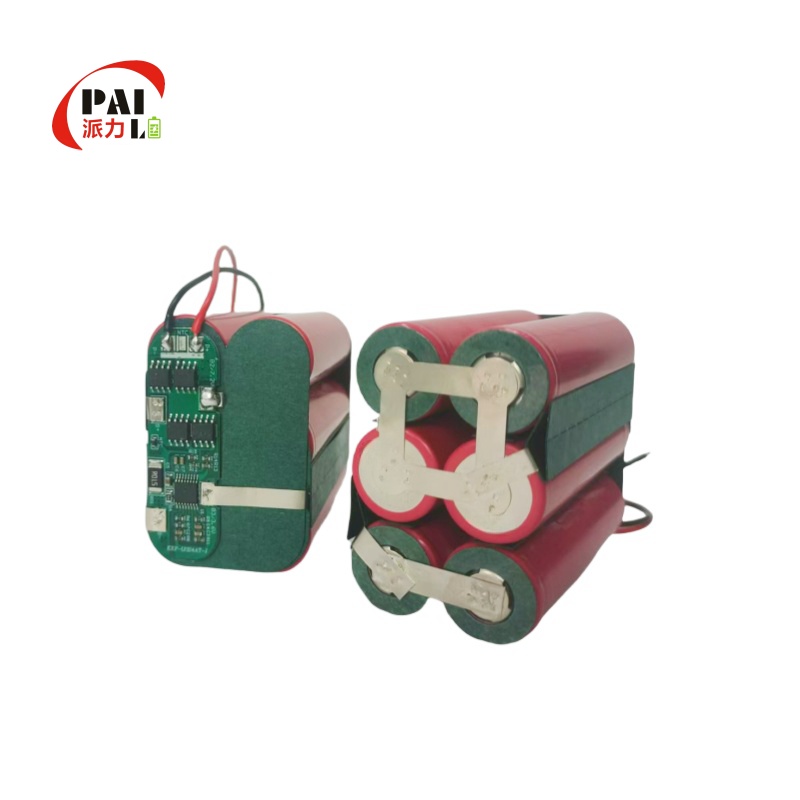

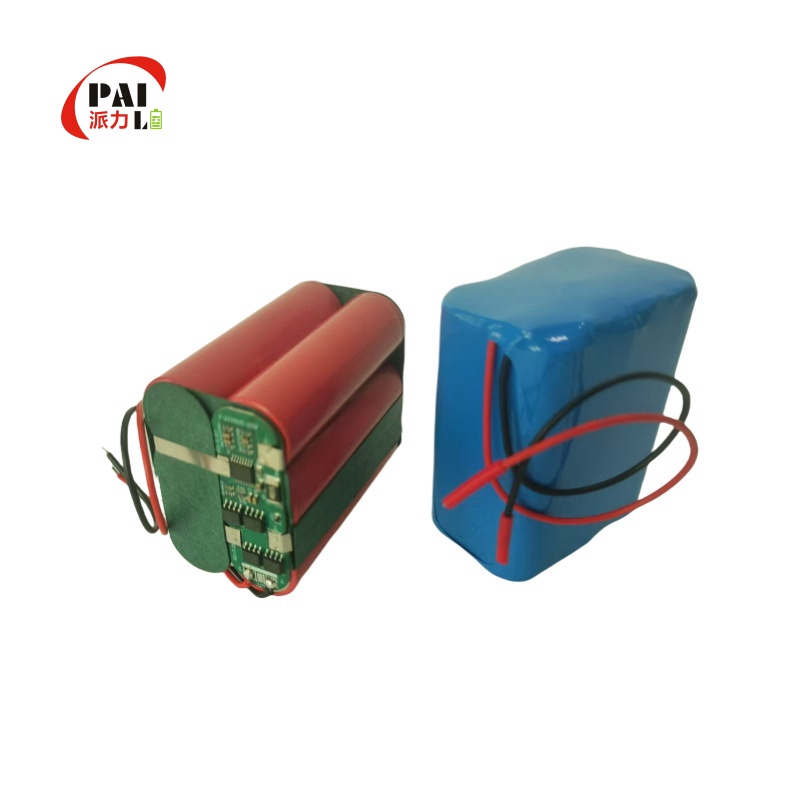

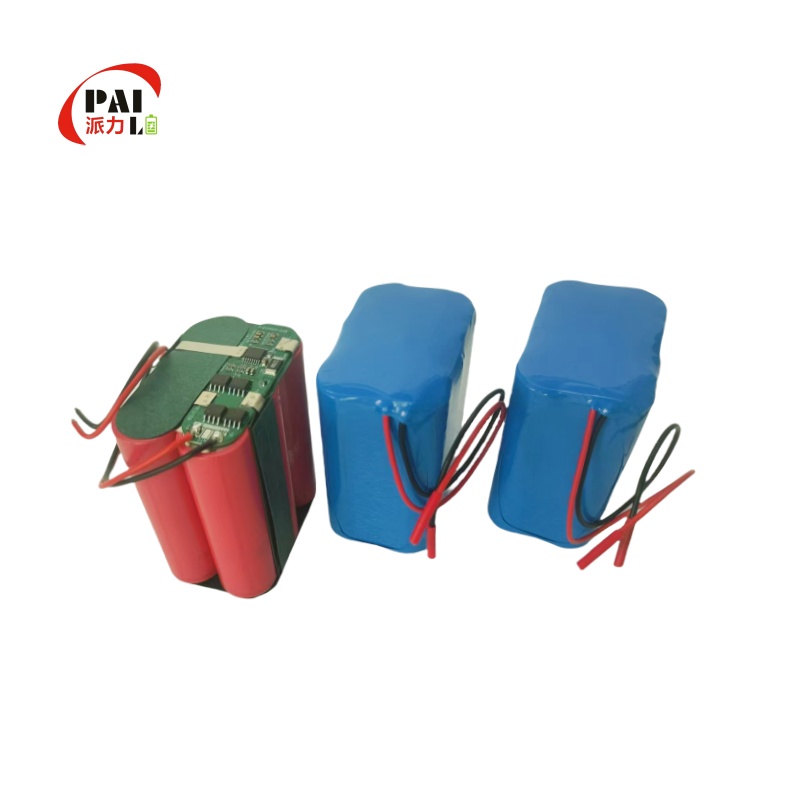

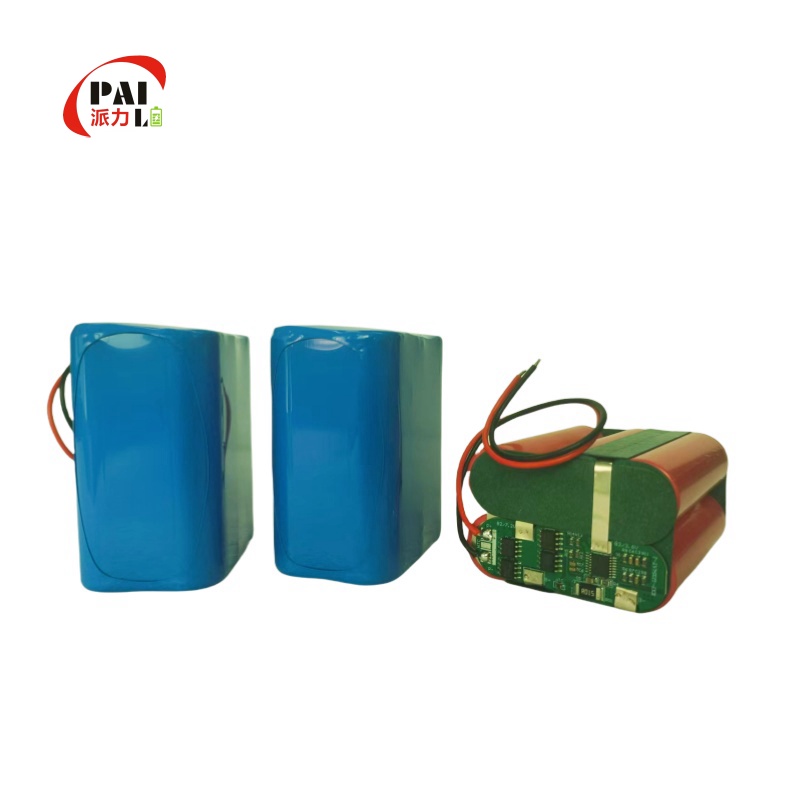

11.1V 5200mAh Sanyo 18650 lithium battery pack ternary lithium material

Product Number: 11.1V 5200mAh Sanyo 18650 lithium battery pack ternary lithium material

Nominal Voltage: 11.1v

Nominal Capacity: 5200mAh

Product Size: 37*55.5*70mm

Charging Temperature: 0--45℃

Discharge Temperature: -20--60℃

Storage Temperature:-15--45℃

Application Field: Special equipment, medical equipment, security monitoring, emergency firefighting, rail transit, surveying and mapping, instrumentation, emergency backup, robots, consumer electronics


detail
Product Number 11.1V 5200mAh Sanyo 18650 lithium battery pack ternary lithium material
Cell Model INR18650
Battery Specification INR18650 3.7V 2600mAh
Nominal Voltage 11.1v
Nominal Capacity 5200mAh
Charging Voltage 12.6V
Charging Current 1A
Discharge Current 0.5C
Instantaneous Discharge Current 1C
Discharge Cut-off Voltage 8.25V
Internal Resistance of Finished Product ≤150mΩ
Battery Weight 300g
Product Size 37*55.5*70mm
Charging Temperature 0--45℃
Discharge Temperature -20--60℃
Storage Temperature -15--45℃
Battery Housing Steel Shell
Intelligent Lithium Battery Protection Over discharge, over charge, over current, over heat, short circuit, balance, communication
Application Field Special equipment, medical equipment, security monitoring, emergency firefighting, rail transit, surveying and mapping, instrumentation, emergency backup, robots, consumer electronics
Product advantages
  • Different Size: Type and Capacity are selectable Easy matching-up
  • Quality Assurance: Paili apply A-class cell, with high capacity and low inner-resistance
  • Stable Performance: Long life of cycles, capacity kept 80% of rated, after 500 cycles of charing-and-discharging
  • Free Memory-Sideeffectiveness: Charging, discharing and using is applicable any where, any time
  • High Safety: Protective design applied via inner PCB. No fire or explosion even Short, Over-charging, Over-discharging, Shock, Vibration, Puncture, High-temperature occured
