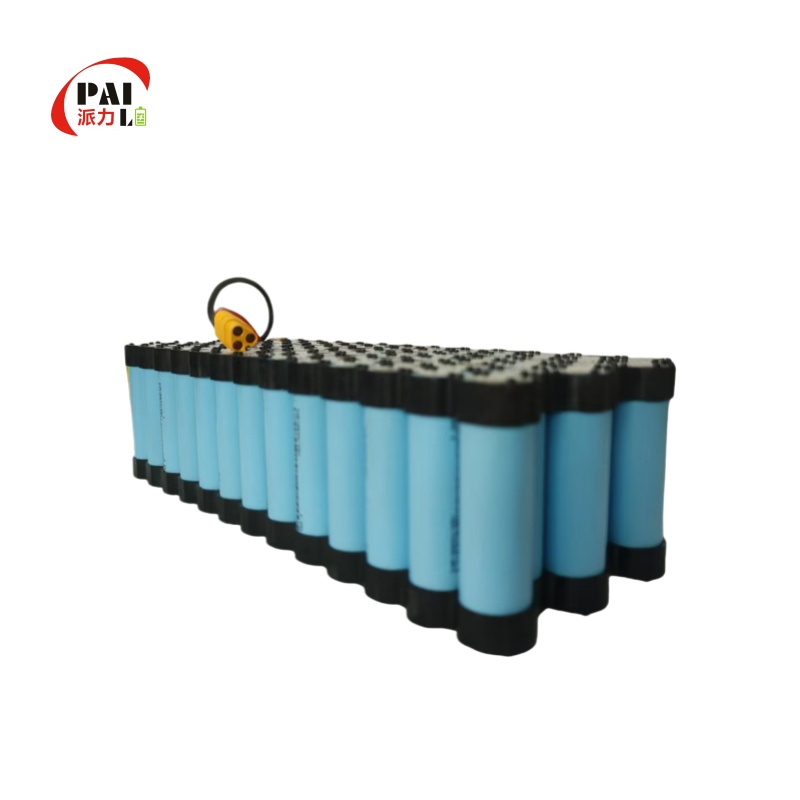

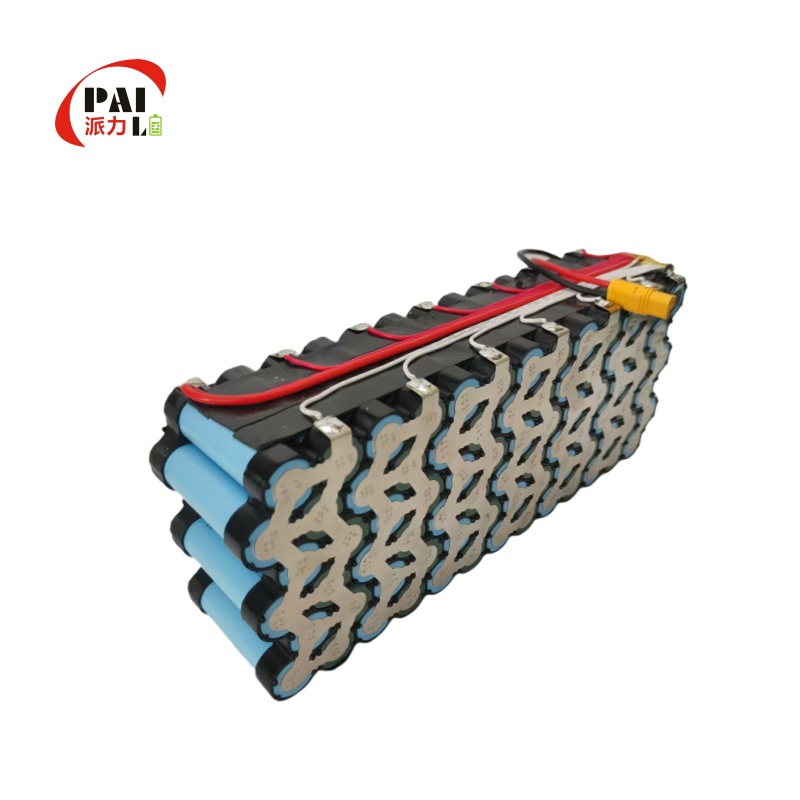

Product Number | 18650 13S6P 3500mAh | ![]() |
|
Cell Model | INR18650 | ||
Battery Specification | INR18650 3.7V 3500mAh | ||
Nominal Voltage | 48V | ||
Nominal Capacity | 21Ah | ||
Charging Voltage | 54.6V | ||
Charging Current | ≤2A | ||
Discharge Current | 10A | ||
Instantaneous Discharge Current | 20A | ||
Discharge Cut-off Voltage | 35.75V | ||
Internal Resistance of Finished Product | ≤350mΩ | ||
Battery Weight | ≤5kg | ||
Product Size | MAX 68*105*280mm | 翻译>||
Charging Temperature | 0--45℃ | ||
Discharge Temperature | -20--60℃ | ||
Storage Temperature | -15--45℃ | ||

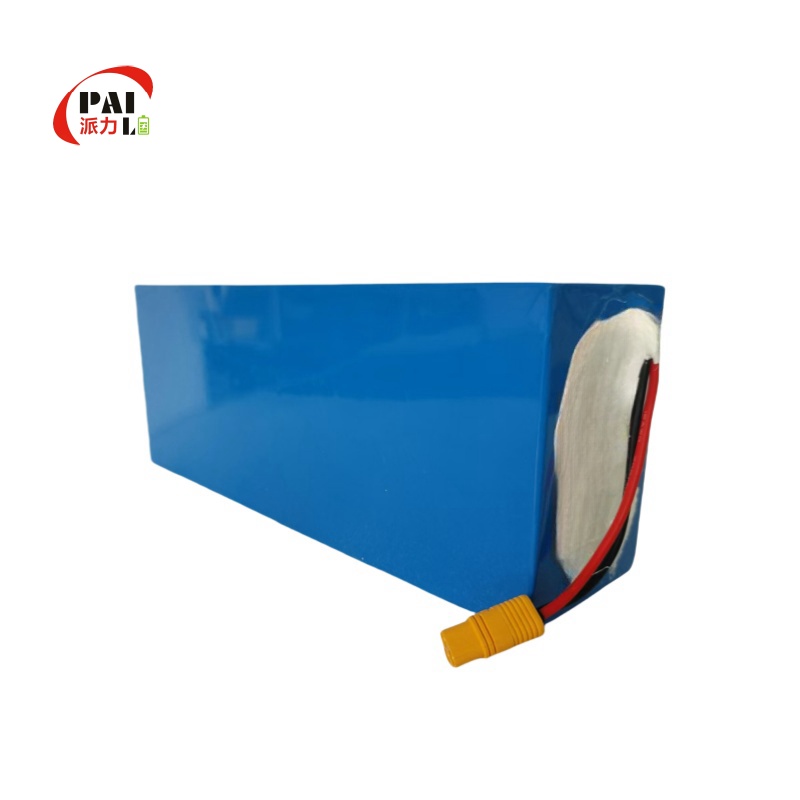

Battery Housing | Steel Shell PVC protective film | ||
Intelligent Lithium Battery Protection | Power management (RS485, CAN protocol), short circuit protection, overcharge protection, over discharge protection, over current protection, over temperature protection, etc. | ||
Application Field | electric bicycle scooter |
Product advantages
- Different Size: Type and Capacity are selectable Easy matching-up
- Quality Assurance: Paili apply A-class cell, with high capacity and low inner-resistance
- Stable Performance: Long life of cycles, capacity kept 80% of rated, after 500 cycles of charing-and-discharging
- Free Memory-Sideeffectiveness: Charging, discharing and using is applicable any where, any time
- High Safety: Protective design applied via inner PCB. No fire or explosion even Short, Over-charging, Over-discharging, Shock, Vibration, Puncture, High-temperature occured
