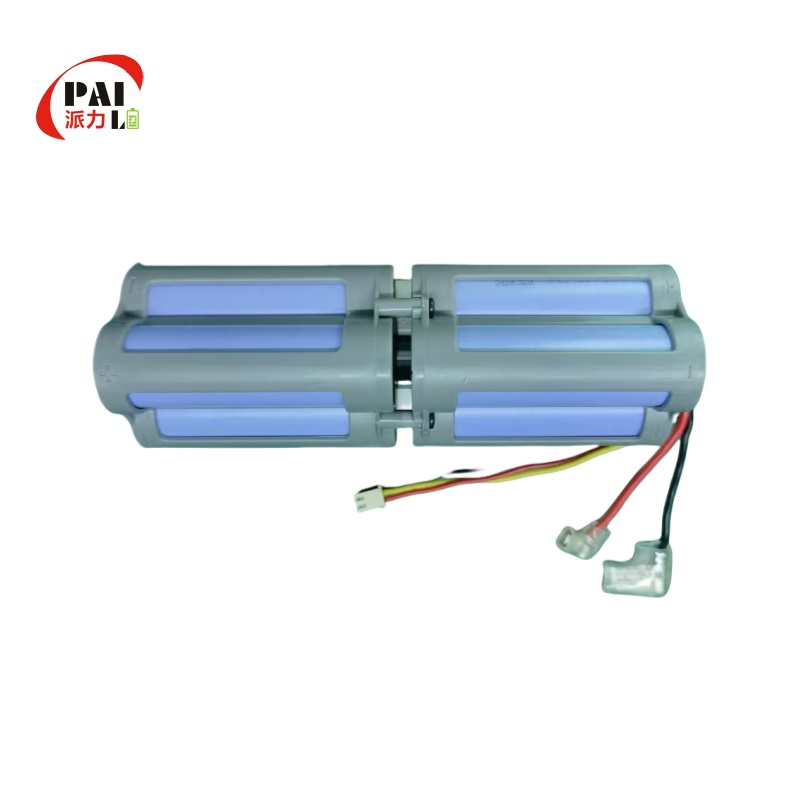

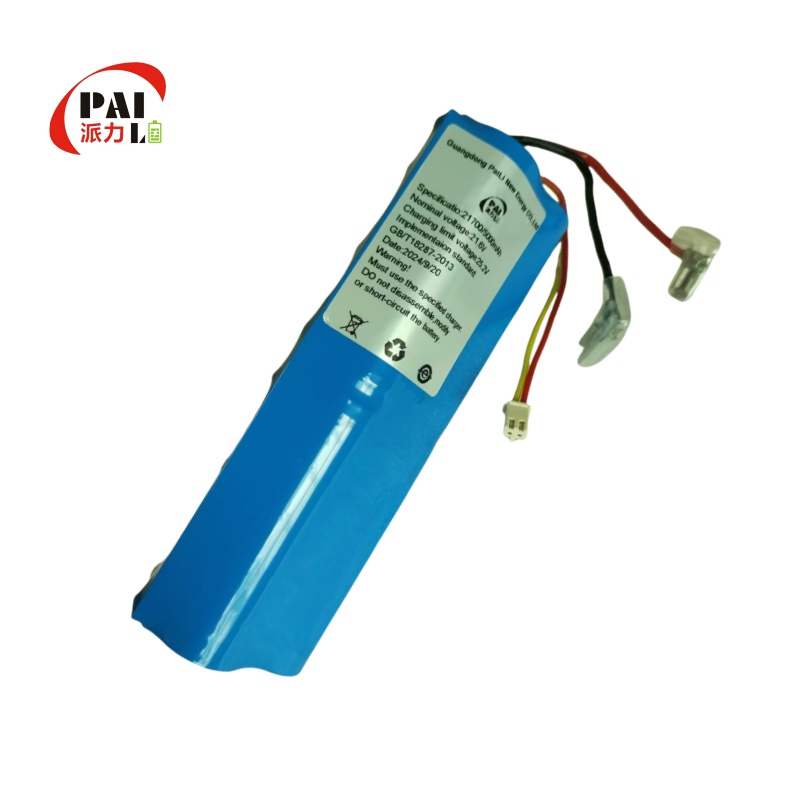

21.6V 5000mAh 21700 6S1P smart lithium battery pack, used in cleaning robot vacuum cleaner

Product Number: PL 21700

Nominal Voltage: 21.6V

Nominal Capacity: 5000mAh

Product Size: MAX 43*43*150mm

Charging Temperature: 0--45℃

Discharge Temperature: -20--60℃

Storage Temperature:-15--60℃

Application Field: used in cleaning robot vacuum cleaner


detail
Product Number PL 21700
Cell Model 21700
Battery Specification 21700/6S1P/5Ah
Nominal Voltage 21.6V
Nominal Capacity 5000mAh
Charging Voltage 21.6V
Charging Current 3A
Discharge Current 10A
Instantaneous Discharge Current 15A
Discharge Cut-off Voltage 16.5V
Internal Resistance of Finished Product ≤350mΩ
Battery Weight 0.6KG
Product Size MAX 43*43*150mm
Charging Temperature 0--45℃
Discharge Temperature -20--60℃
Storage Temperature -15--60℃
Battery Housing Steel Shell
Intelligent Lithium Battery Protection Over discharge, over charge, over current, over heat, short circuit, balance, communication
Application Field used in cleaning robot vacuum cleaner
Product advantages
  • Different Size: Type and Capacity are selectable Easy matching-up
  • Quality Assurance: Paili apply A-class cell, with high capacity and low inner-resistance
  • Stable Performance: Long life of cycles, capacity kept 80% of rated, after 500 cycles of charing-and-discharging
  • Free Memory-Sideeffectiveness: Charging, discharing and using is applicable any where, any time
  • High Safety: Protective design applied via inner PCB. No fire or explosion even Short, Over-charging, Over-discharging, Shock, Vibration, Puncture, High-temperature occured
