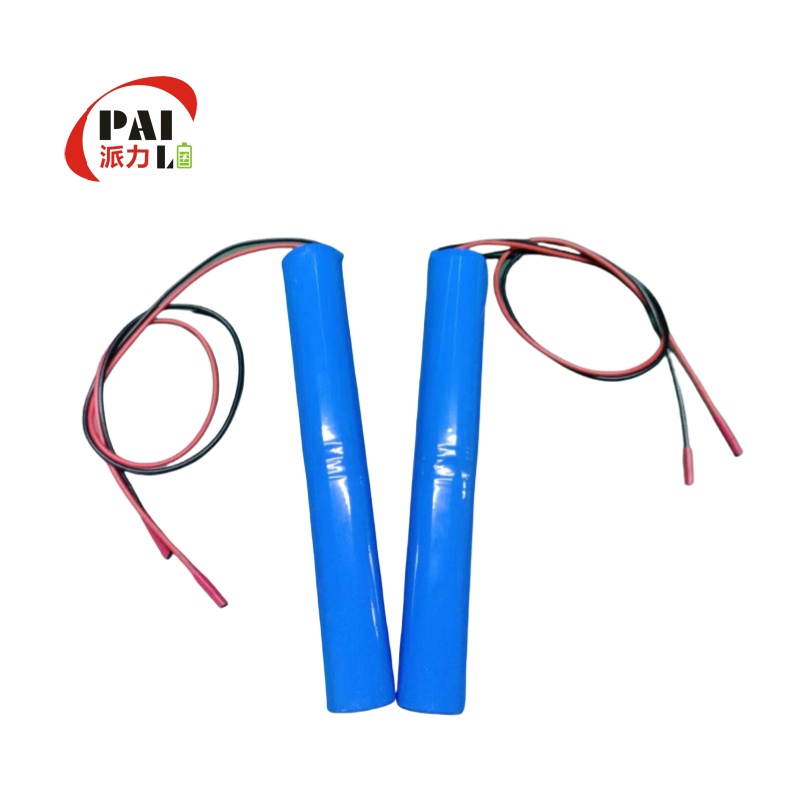

18650 2S1P 3200mAh suitable for LED lights, electric toys and digital electronic lithium battery packs

Product Number: 18650 2S1P 3200mAh

Nominal Voltage: 7.4V

Nominal Capacity: 3200mAh

Product Size: MAX 19*37*68mm

Charging Temperature: 0--45℃

Discharge Temperature: -20--60℃

Storage Temperature:-15--45℃

Application Field: LED lights, electric toys and digital electronic lithium battery packs


detail
Product Number 18650 2S1P 3200mAh
Cell Model INR18650
Battery Specification INR18650 3.7V 3200mAh
Nominal Voltage 7.4V
Nominal Capacity 3200mAh
Charging Voltage 8.4V
Charging Current ≤2A
Discharge Current 6A
Instantaneous Discharge Current 10A
Discharge Cut-off Voltage 5V
Internal Resistance of Finished Product ≤150mΩ
Battery Weight 100g
Product Size MAX 19*37*68mm
Charging Temperature 0--45℃
Discharge Temperature -20--60℃
Storage Temperature -15--45℃
Battery Housing Steel Shell PVC protective film
Intelligent Lithium Battery Protection Over discharge, over charge, over current, over heat, short circuit, balance, communication
Application Field LED lights, electric toys and digital electronic lithium battery packs
Product advantages
  • Different Size: Type and Capacity are selectable Easy matching-up
  • Quality Assurance: Paili apply A-class cell, with high capacity and low inner-resistance
  • Stable Performance: Long life of cycles, capacity kept 80% of rated, after 500 cycles of charing-and-discharging
  • Free Memory-Sideeffectiveness: Charging, discharing and using is applicable any where, any time
  • High Safety: Protective design applied via inner PCB. No fire or explosion even Short, Over-charging, Over-discharging, Shock, Vibration, Puncture, High-temperature occured
