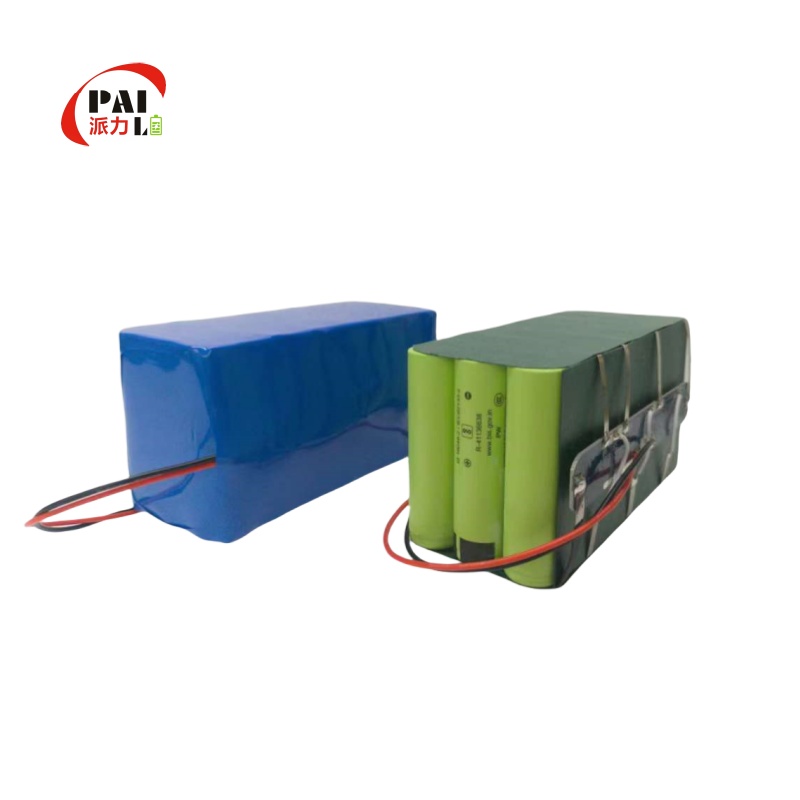

25.2V 6Ah 18650 Lithium Battery Pack Ternary Lithium Material

Product Number: 25.2V 6Ah 18650 Lithium Battery Pack Ternary Lithium Material

Nominal Voltage: 25.2v

Nominal Capacity: 6Ah

Product Size: MAX 55.5*68*74mm

Charging Temperature: -20---45

Discharge Temperature: -20---60

Storage Temperature:-15--80

Application Field: Special equipment, medical equipment, security monitoring, emergency firefighting, rail transit, surveying and mapping, instrumentation, emergency backup, robots, consumer electronics


detail
Product Number 25.2V 6Ah 18650 Lithium Battery Pack Ternary Lithium Material
Cell Model 18650 3.7v 3000mAh
Battery Specification 18650/7S2P/6Ah
Nominal Voltage 25.2v
Nominal Capacity 6Ah
Charging Voltage 29.4v
Charging Current 3A
Discharge Current 6A
Instantaneous Discharge Current 10A
Discharge Cut-off Voltage 19.25V
Internal Resistance of Finished Product ≤250mΩ
Battery Weight 0.7KG
Product Size MAX 55.5*68*74mm
Charging Temperature -20---45
Discharge Temperature -20---60
Storage Temperature -15--80
Battery Housing Steel Shell PVC protective film
Intelligent Lithium Battery Protection Over discharge, over charge, over current, over heat, short circuit, balance, communication
Application Field Special equipment, medical equipment, security monitoring, emergency firefighting, rail transit, surveying and mapping, instrumentation, emergency backup, robots, consumer electronics
Product advantages
  • Different Size: Type and Capacity are selectable Easy matching-up
  • Quality Assurance: Paili apply A-class cell, with high capacity and low inner-resistance
  • Stable Performance: Long life of cycles, capacity kept 80% of rated, after 500 cycles of charing-and-discharging
  • Free Memory-Sideeffectiveness: Charging, discharing and using is applicable any where, any time
  • High Safety: Protective design applied via inner PCB. No fire or explosion even Short, Over-charging, Over-discharging, Shock, Vibration, Puncture, High-temperature occured
