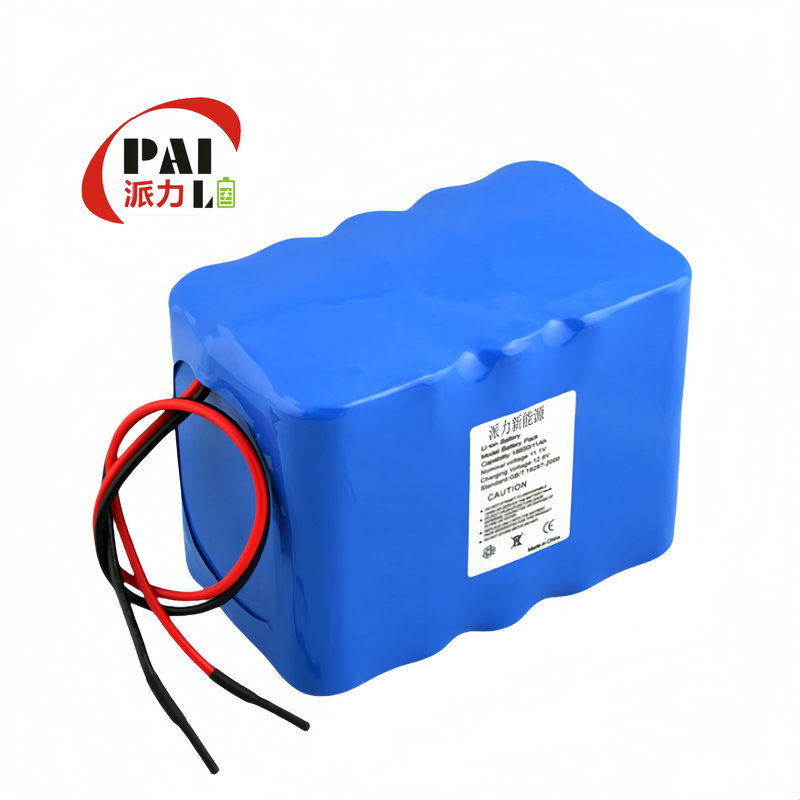

18650 3S5P 11.1V 11Ah lithium battery pack for solar lights, electric equipment and traffic lights

Product Number: 18650 3S5P 11.1V 11Ah

Nominal Voltage: 11.1V

Nominal Capacity: 11Ah

Product Size: MAX 37*68*93mm

Charging Temperature: 0--45℃

Discharge Temperature: -20--60℃

Storage Temperature:-15--60℃

Application Field: solar lights, electric equipment and traffic lights


detail
Product Number 18650 3S5P 11.1V 11Ah
Cell Model INR18650
Battery Specification INR18650 3.7V 2200mAh
Nominal Voltage 11.1V
Nominal Capacity 11Ah
Charging Voltage 12.6V
Charging Current ≤2A
Discharge Current 6A
Instantaneous Discharge Current 10A
Discharge Cut-off Voltage 8.25V
Internal Resistance of Finished Product ≤250mΩ
Battery Weight 0.8KG
Product Size MAX 37*68*93mm
Charging Temperature 0--45℃
Discharge Temperature -20--60℃
Storage Temperature -15--60℃
Battery Housing Steel Shell PVC protective film
Intelligent Lithium Battery Protection Power management (RS485, CAN protocol), short circuit protection, overcharge protection, over discharge protection, over current protection, over temperature protection, etc.
Application Field solar lights, electric equipment and traffic lights
Product advantages
  • Different Size: Type and Capacity are selectable Easy matching-up
  • Quality Assurance: Paili apply A-class cell, with high capacity and low inner-resistance
  • Stable Performance: Long life of cycles, capacity kept 80% of rated, after 500 cycles of charing-and-discharging
  • Free Memory-Sideeffectiveness: Charging, discharing and using is applicable any where, any time
  • High Safety: Protective design applied via inner PCB. No fire or explosion even Short, Over-charging, Over-discharging, Shock, Vibration, Puncture, High-temperature occured
