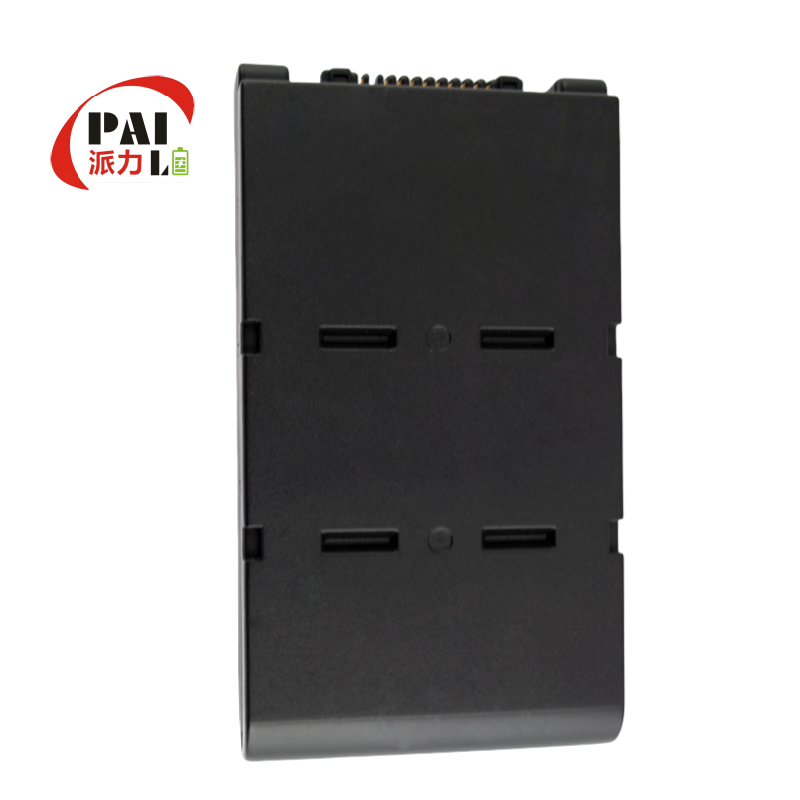

18650 3S2P 10.8V 5Ah Ultrasonic Flaw Detector Lithium Battery Pack I2C Communication.

Product Number: PL 18650 3S2P

Nominal Voltage: 10.8V

Nominal Capacity: 5000mAh

Product Size: MAX 22*68*120mm

Charging Temperature: 0~45℃

Discharge Temperature: -20~60℃

Storage Temperature:-20~45℃

Application Field: Ultrasonic flaw detection, medical equipment, instrumentation


detail
Product Number PL 18650 3S2P
Cell Model INR18650 3.7V 2500mAh
Battery Specification 18650 3S2P 10.8V 5Ah
Nominal Voltage 10.8V
Nominal Capacity 5000mAh
Charging Voltage 12.6V
Charging Current ≤1C
Discharge Current ≤1C
Instantaneous Discharge Current ≤2C
Discharge Cut-off Voltage 8.25V
Internal Resistance of Finished Product ≤160mΩ
Battery Weight ≤1kg
Product Size MAX 22*68*120mm
Charging Temperature 0~45℃
Discharge Temperature -20~60℃
Storage Temperature -20~45℃
Battery Housing PP silico gel,Flame retardant plastic
Intelligent Lithium Battery Protection Power management (I2C,RS485, CAN protocol), short circuit protection, overcharge protection, over discharge protection, over current protection, over temperature protection, etc.
Application Field Ultrasonic flaw detection, medical equipment, instrumentation
Product advantages
  • Different Size: Type and Capacity are selectable Easy matching-up
  • Quality Assurance: Paili apply A-class cell, with high capacity and low inner-resistance
  • Stable Performance: Long life of cycles, capacity kept 80% of rated, after 500 cycles of charing-and-discharging
  • Free Memory-Sideeffectiveness: Charging, discharing and using is applicable any where, any time
  • High Safety: Protective design applied via inner PCB. No fire or explosion even Short, Over-charging, Over-discharging, Shock, Vibration, Puncture, High-temperature occured
