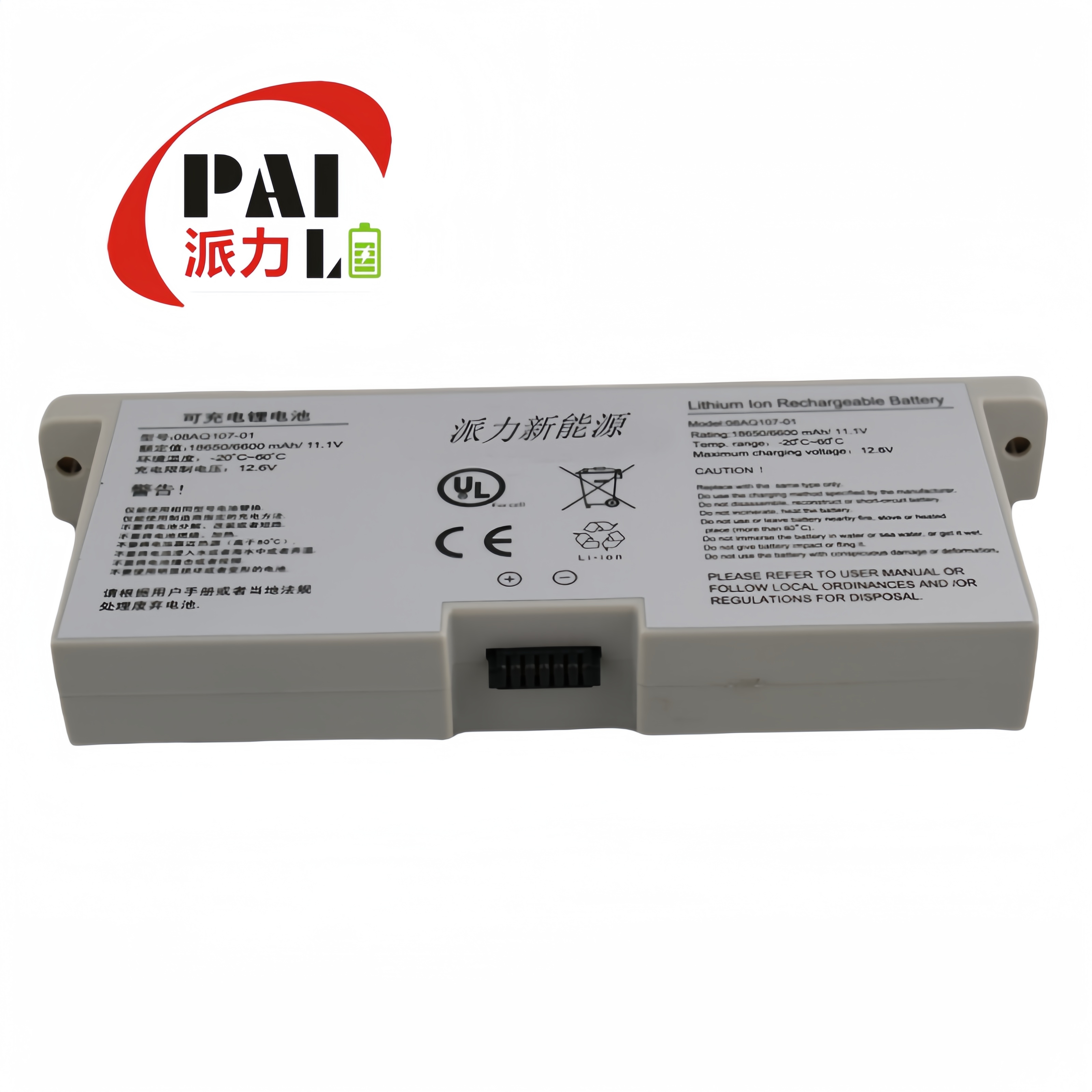

18650 3S3P 11.1V 6600mAh B-mode ultrasound machine lithium battery, medical equipment and instrumentation

Product Number: PL 18650

Nominal Voltage: 11.1V

Nominal Capacity: 6600mAh

Product Size: MAX30*65*130mm

Charging Temperature: 0~45℃

Discharge Temperature: -20~60℃

Storage Temperature:-20~45℃

Application Field: B-mode ultrasound machine lithium battery, medical equipment and instrumentation


detail
Product Number PL 18650
Cell Model INR18650 3.7V 2200mAh
Battery Specification 18650 3S3P 11.1V 6600mAh
Nominal Voltage 11.1V
Nominal Capacity 6600mAh
Charging Voltage 12.6V
Charging Current ≤1C
Discharge Current ≤1C
Instantaneous Discharge Current ≤2C
Discharge Cut-off Voltage 8.25V
Internal Resistance of Finished Product ≤150mΩ
Battery Weight ≤1kg
Product Size MAX30*65*130mm
Charging Temperature 0~45℃
Discharge Temperature -20~60℃
Storage Temperature -20~45℃
Battery Housing PVC plastic material
Intelligent Lithium Battery Protection Power management (RS485, CAN protocol), short circuit protection, overcharge protection, over discharge protection, over current protection, over temperature protection, etc.
Application Field B-mode ultrasound machine lithium battery, medical equipment and instrumentation

The battery pack is safe and stable, with large capacity and low power consumption;


It has a long cycle life and complies with the value concept of low carbon, energy saving and environmental protection;


It has good discharge performance under special occasions;


Product advantages
  • Different Size: Type and Capacity are selectable Easy matching-up
  • Quality Assurance: Paili apply A-class cell, with high capacity and low inner-resistance
  • Stable Performance: Long life of cycles, capacity kept 80% of rated, after 500 cycles of charing-and-discharging
  • Free Memory-Sideeffectiveness: Charging, discharing and using is applicable any where, any time
  • High Safety: Protective design applied via inner PCB. No fire or explosion even Short, Over-charging, Over-discharging, Shock, Vibration, Puncture, High-temperature occured
