465988 3.7V 2630mAh explosion-proof polymer lithium battery for special handheld devices
1 / 3

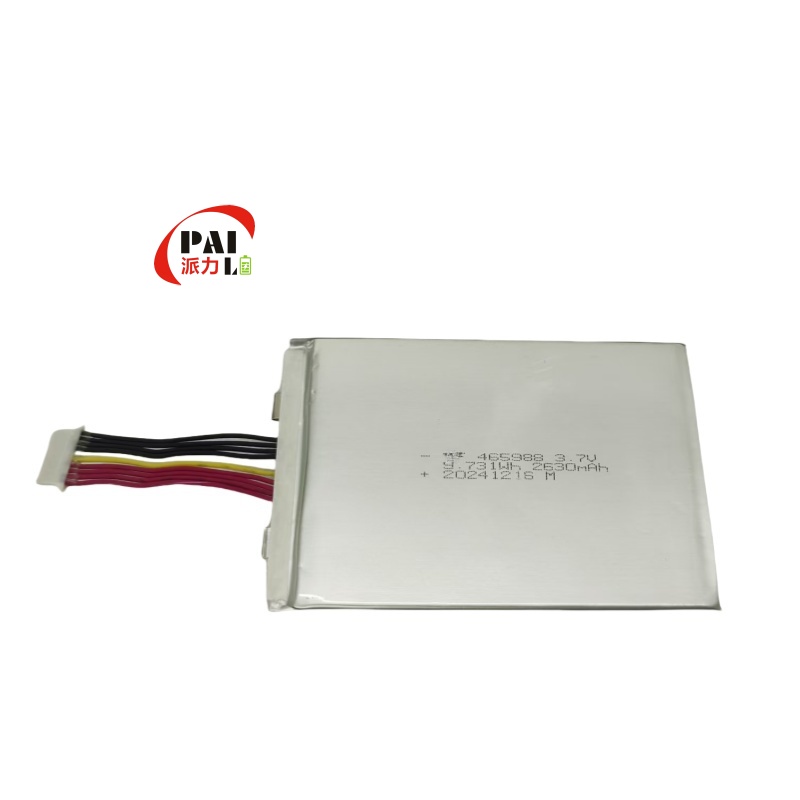

465988 3.7V 2630mAh explosion-proof polymer lithium battery for special handheld devices

Product Number: PL 465988

Nominal Voltage: 3.7V

Nominal Capacity: 2630mAh

Product Size: MAX 46*59*88mm

Charging Temperature: 0~45℃

Discharge Temperature: -20~60℃

Storage Temperature:-20~45℃

Application Field: Special scenarios such as oil stations, gas stations, and mines


detail
Product Number PL 465988
Cell Model 465988
Battery Specification 465988 3.7V 2630mAh
Nominal Voltage 3.7V
Nominal Capacity 2630mAh
Charging Voltage 4.2V
Charging Current ≤1C
Discharge Current ≤2C
Instantaneous Discharge Current ≤5A
Discharge Cut-off Voltage 2.75V
Internal Resistance of Finished Product ≤100mΩ
Battery Weight ≤60g
Product Size MAX 46*59*88mm
Charging Temperature 0~45℃
Discharge Temperature -20~60℃
Storage Temperature -20~45℃
Battery Housing Gel electrolyte and aluminum-plastic film outer packaging
Intelligent Lithium Battery Protection Power management (RS485, CAN protocol), short circuit protection, overcharge protection, over discharge protection, over current protection, over temperature protection, etc.
Application Field Special scenarios such as oil stations, gas stations, and mines

The battery pack is safe, stable, explosion-proof, large-capacity, and has low power consumption;


It has a long cycle life and complies with the value concept of low carbon, energy saving, and environmental protection;


It has good discharge conditions under special occasions;


Product advantages
  • Different Size: Type and Capacity are selectable Easy matching-up
  • Quality Assurance: Paili apply A-class cell, with high capacity and low inner-resistance
  • Stable Performance: Long life of cycles, capacity kept 80% of rated, after 500 cycles of charing-and-discharging
  • Free Memory-Sideeffectiveness: Charging, discharing and using is applicable any where, any time

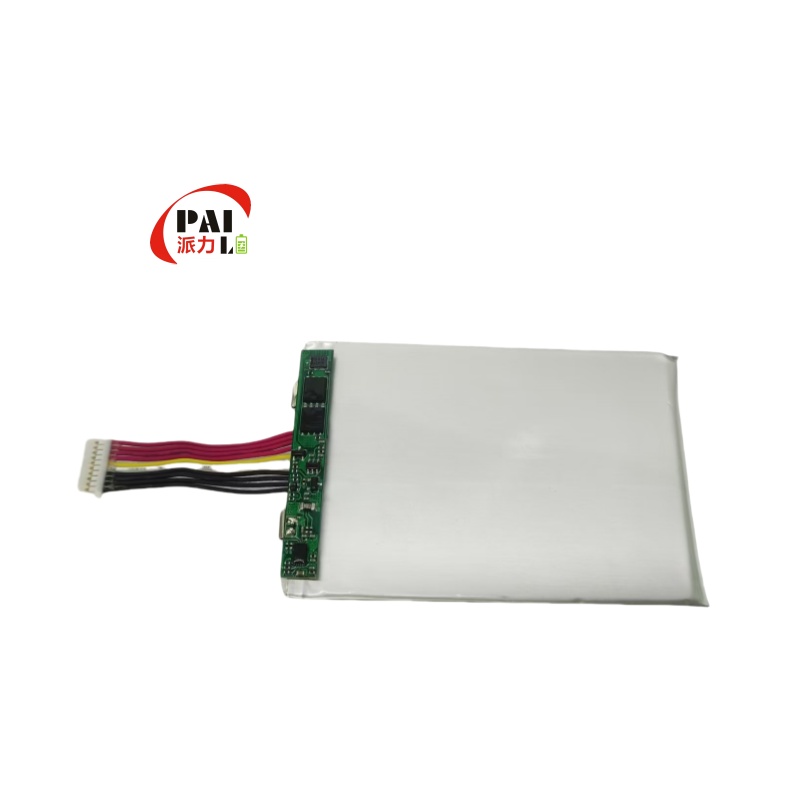

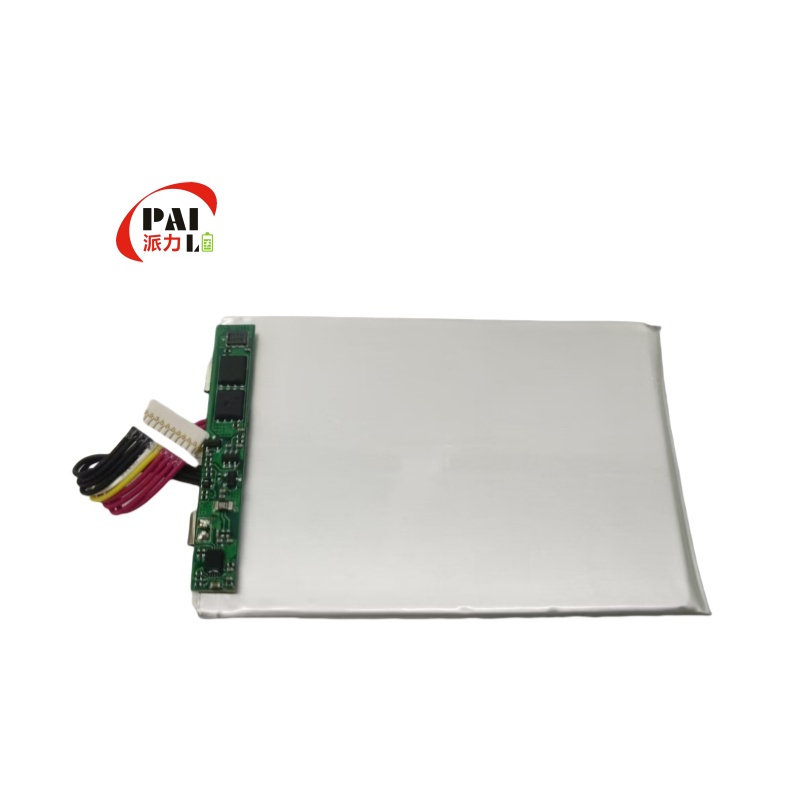

  • High Safety: Protective design applied via inner PCB. No fire or explosion even Short, Over-charging, Over-discharging, Shock, Vibration, Puncture, High-temperature occured
