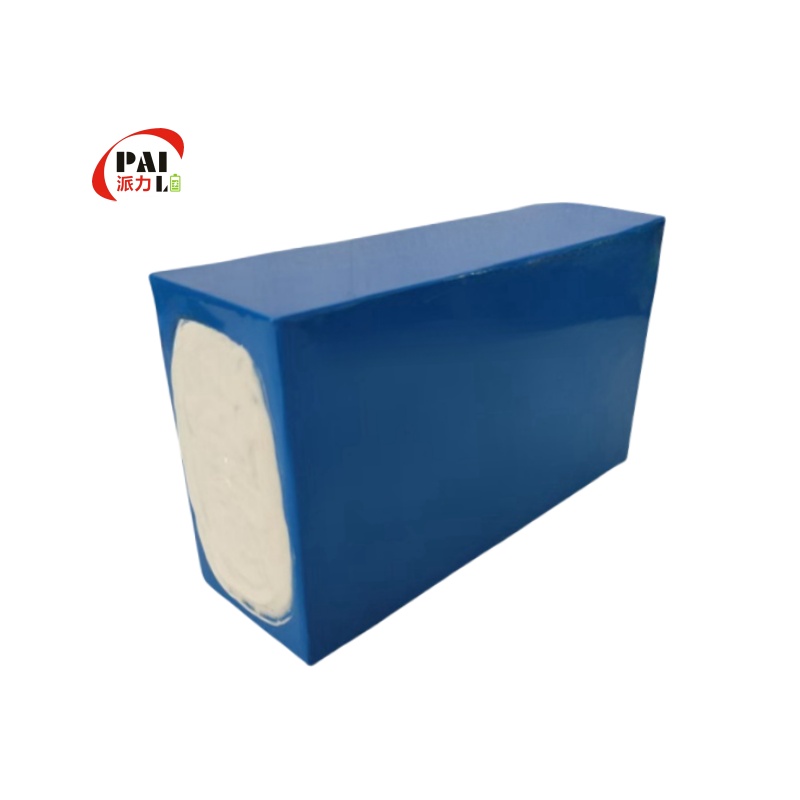

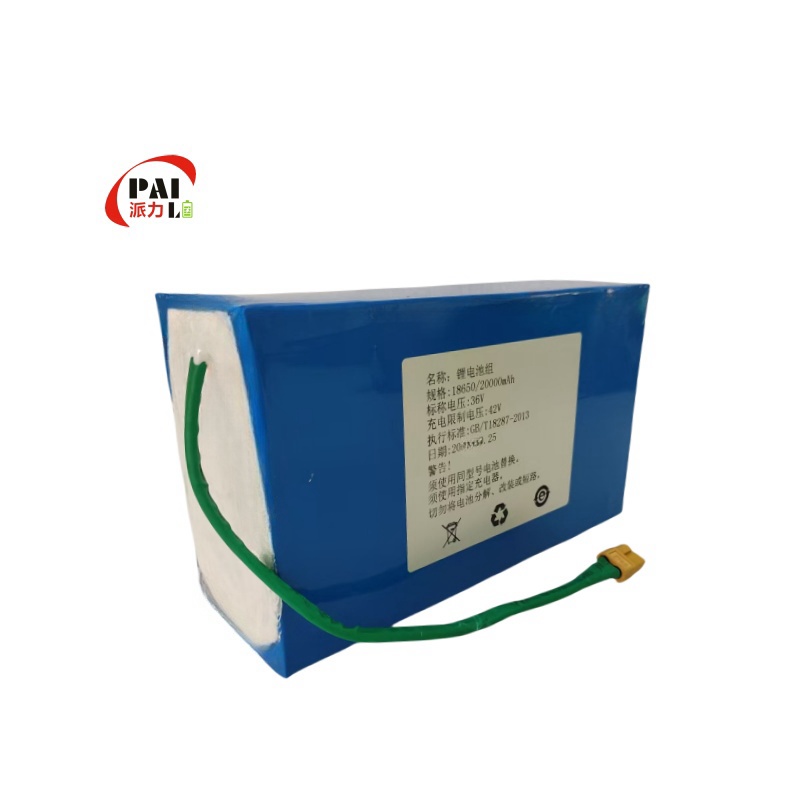

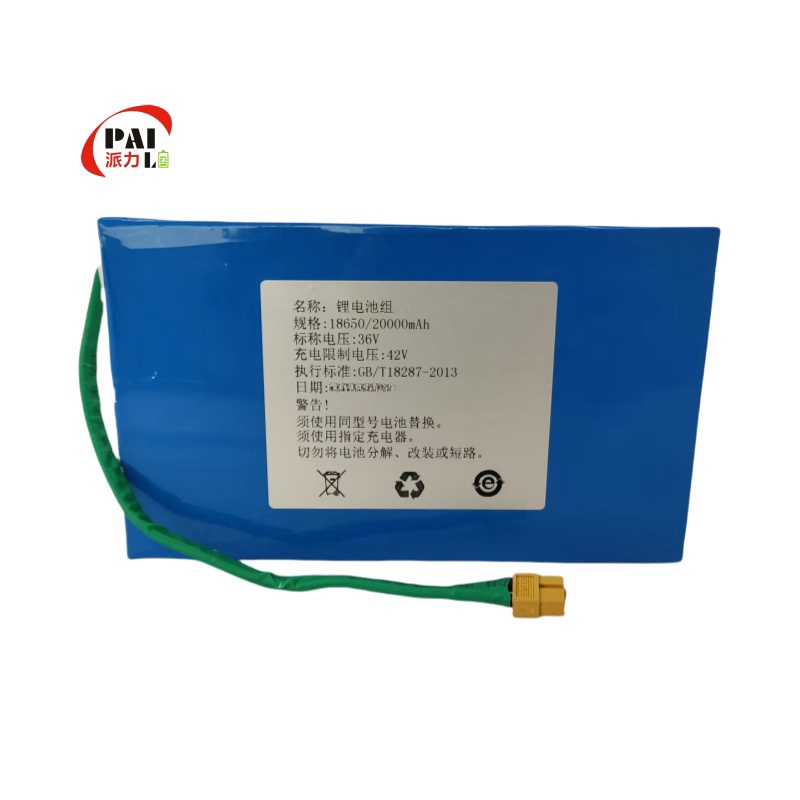

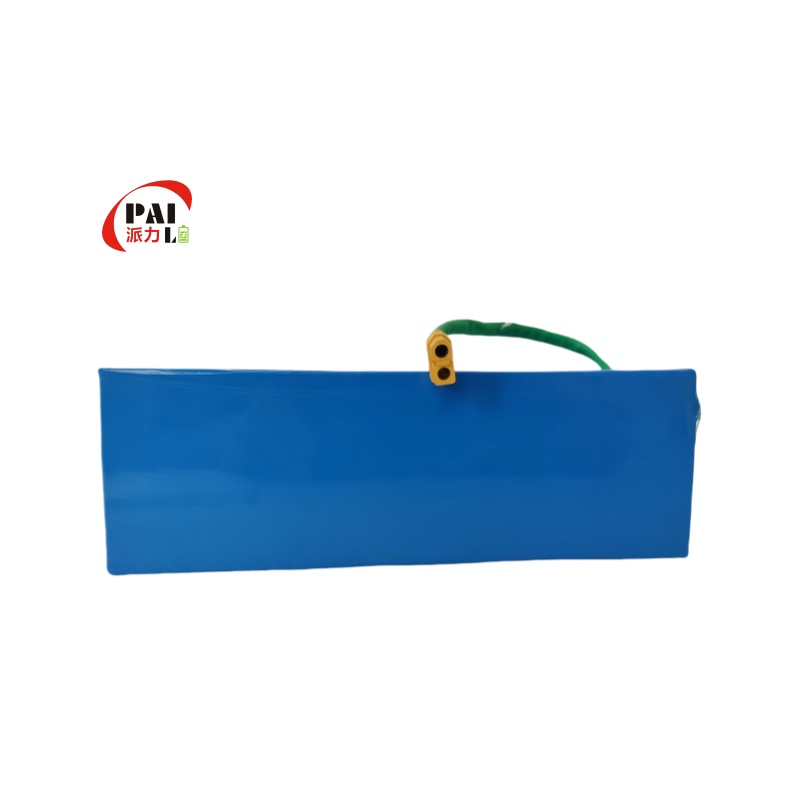

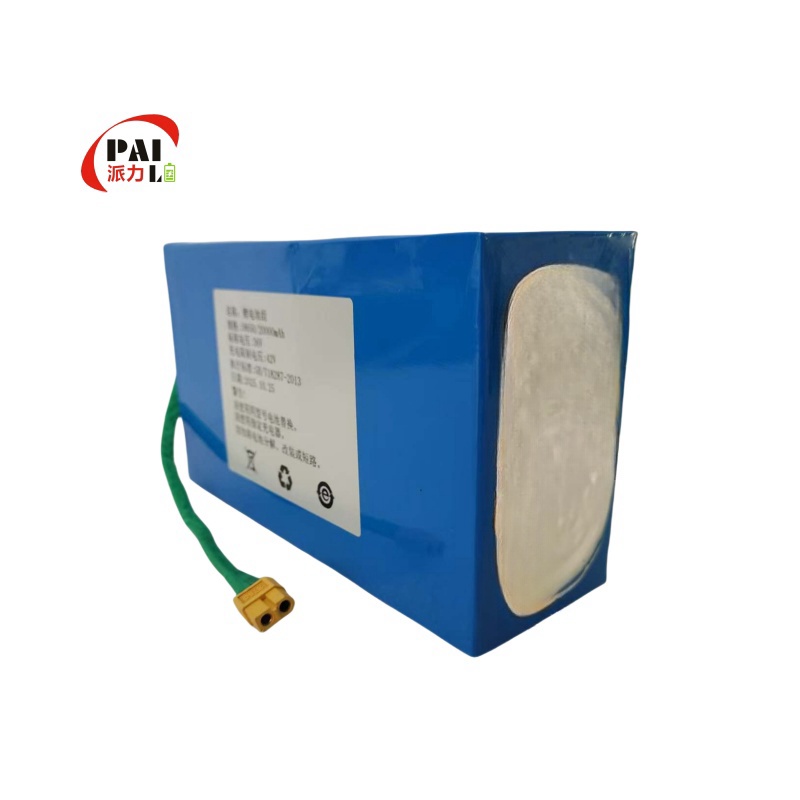

18650 smart lithium battery pack with foldable ebike bicycle

Product Number: High-performance E-bike foldable bicycle 1

Nominal Voltage: 36V

Nominal Capacity: 20Ah

Product Size: 10*30*150

Charging Temperature: 0~45℃

Discharge Temperature: -20~60℃

Storage Temperature:-20~45℃

Application Field: ebike bicycle


detail
Product Number High-performance E-bike foldable bicycle 1
Cell Model 18650
Battery Specification 10S8P
Nominal Voltage 36V
Nominal Capacity 20Ah
Charging Voltage 42V
Charging Current ≤10A
Discharge Current 60A
Instantaneous Discharge Current 100A
Discharge Cut-off Voltage 27.5V
Internal Resistance of Finished Product ≤100mΩ
Battery Weight ≤4.2kg
Product Size 10*30*150
Charging Temperature 0~45℃
Discharge Temperature -20~60℃
Storage Temperature -20~45℃
Battery Housing Steel Shell
Intelligent Lithium Battery Protection Power management (RS485, CAN protocol), short circuit protection, overcharge protection, over discharge protection, over current protection, over temperature protection, etc.
Application Field ebike bicycle

18650 smart lithium battery pack with E-Bike scooter cycles

Product advantages
  • Different Size: Type and Capacity are selectable Easy matching-up
  • Quality Assurance: Paili apply A-class cell, with high capacity and low inner-resistance
  • Stable Performance: Long life of cycles, capacity kept 80% of rated, after 500 cycles of charing-and-discharging
  • Free Memory-Sideeffectiveness: Charging, discharing and using is applicable any where, any time
  • High Safety: Protective design applied via inner PCB. No fire or explosion even Short, Over-charging, Over-discharging, Shock, Vibration, Puncture, High-temperature occured
