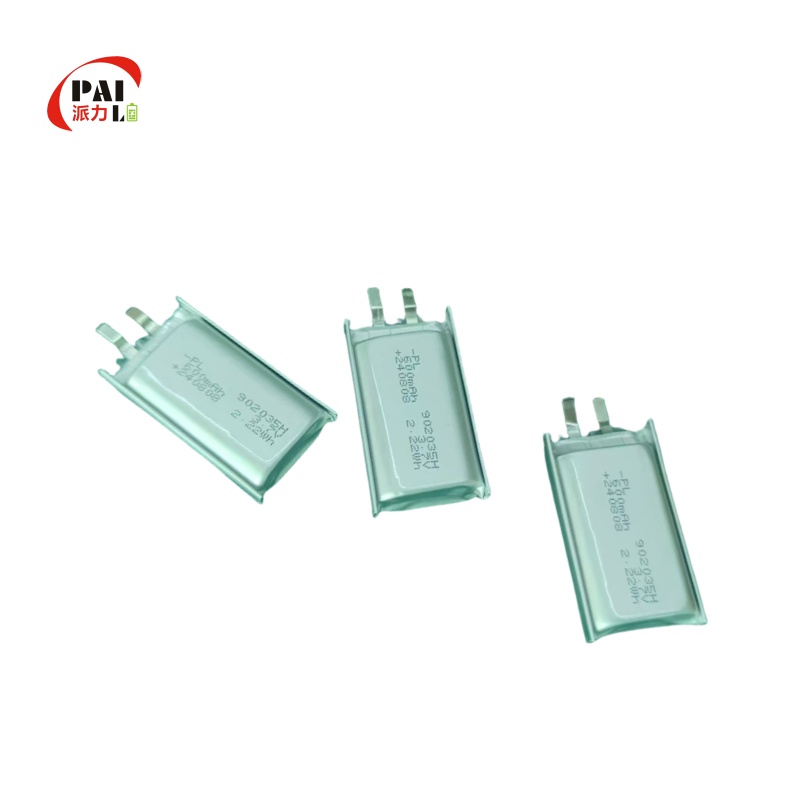

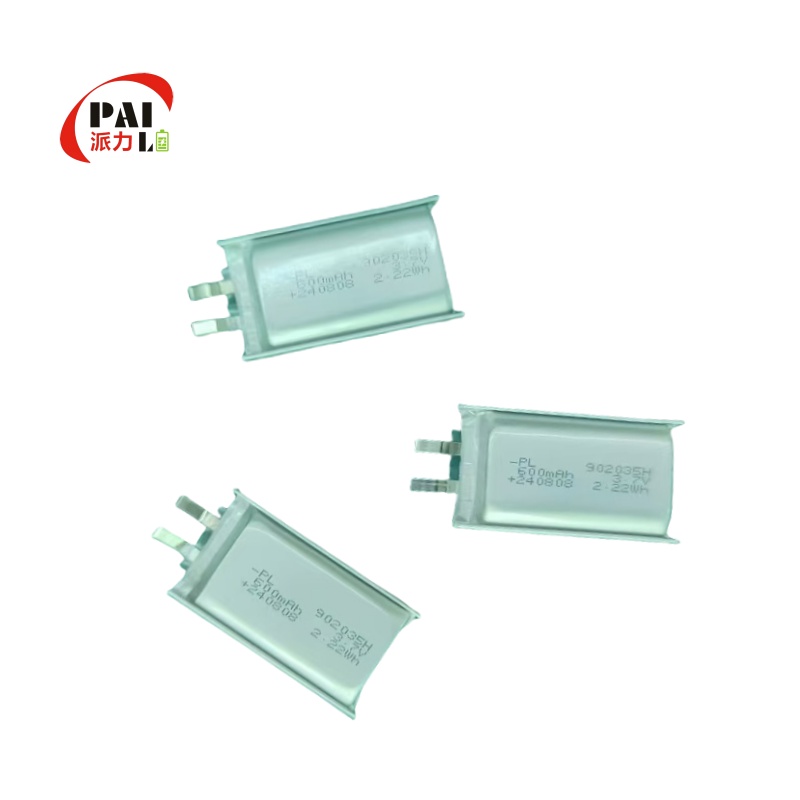

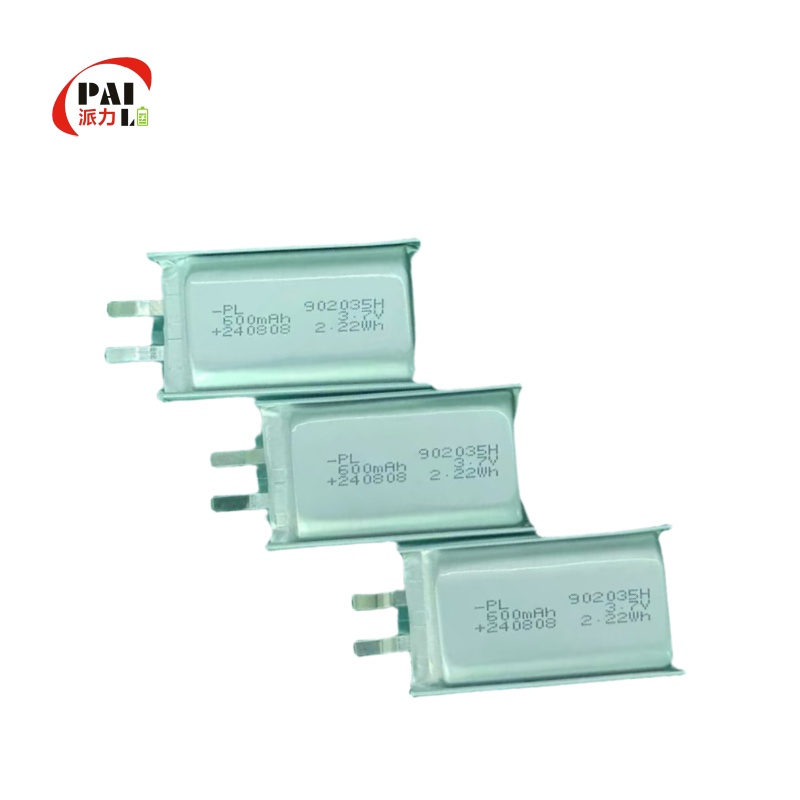

902035H 3.7V 600MAh Soft-pack high temperature polymer lithium battery

Product Number: PL 902035H

Nominal Voltage: 3.7V

Nominal Capacity: 600mAh

Product Size: MAX 9*20*35mm

Charging Temperature: 0--45℃

Discharge Temperature: -20--60℃

Storage Temperature:-15--70℃

Application Field: Digital electronics, consumer electronics, wearable devices


detail
Product Number PL 902035H
Cell Model 902035H
Battery Specification 902035H 3.7V 600mAh
Nominal Voltage 3.7V
Nominal Capacity 600mAh
Charging Voltage 4.2V
Charging Current ≤1A
Discharge Current ≤2A
Instantaneous Discharge Current ≤5A
Discharge Cut-off Voltage 2.75V
Internal Resistance of Finished Product ≤50mΩ
Battery Weight 15g
Product Size MAX 9*20*35mm
Charging Temperature 0--45℃
Discharge Temperature -20--60℃
Storage Temperature -15--70℃
Battery Housing Gel electrolyte and aluminum-plastic film outer packaging
Intelligent Lithium Battery Protection Over discharge, over charge, over current, over heat, short circuit, balance, communication
Application Field Digital electronics, consumer electronics, wearable devices
Product advantages
  • Different Size: Type and Capacity are selectable Easy matching-up
  • Quality Assurance: Paili apply A-class cell, with high capacity and low inner-resistance
  • Stable Performance: Long life of cycles, capacity kept 80% of rated, after 500 cycles of charing-and-discharging
  • Free Memory-Sideeffectiveness: Charging, discharing and using is applicable any where, any time
  • High Safety: Protective design applied via inner PCB. No fire or explosion even Short, Over-charging, Over-discharging, Shock, Vibration, Puncture, High-temperature occured
