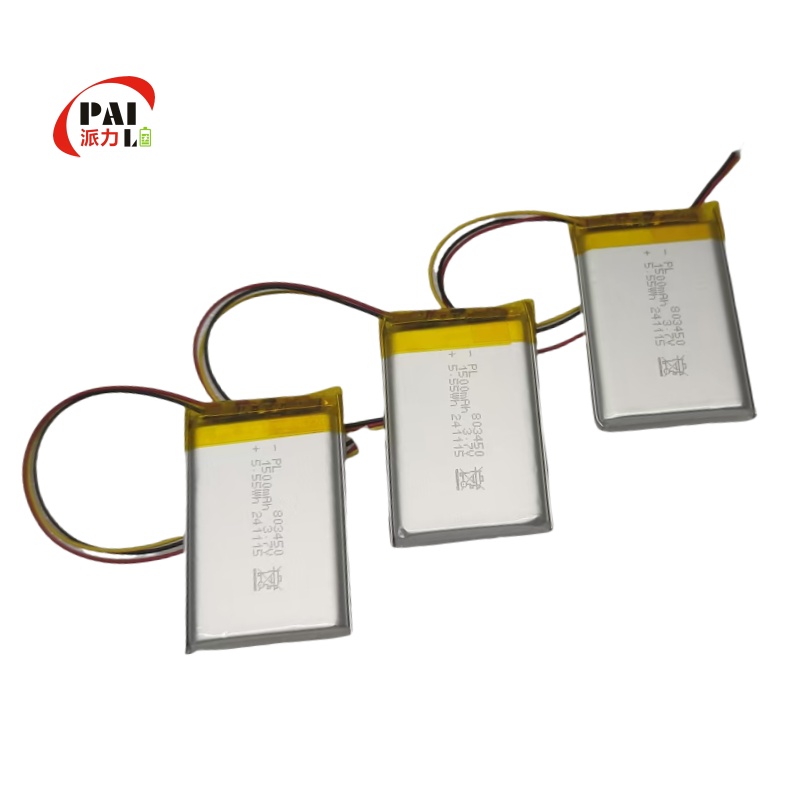

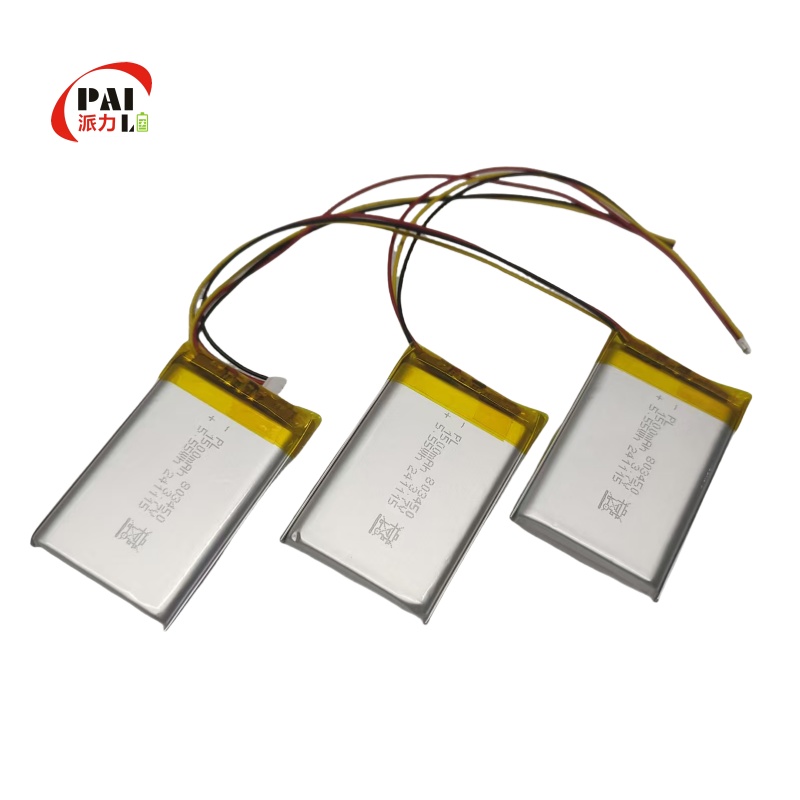

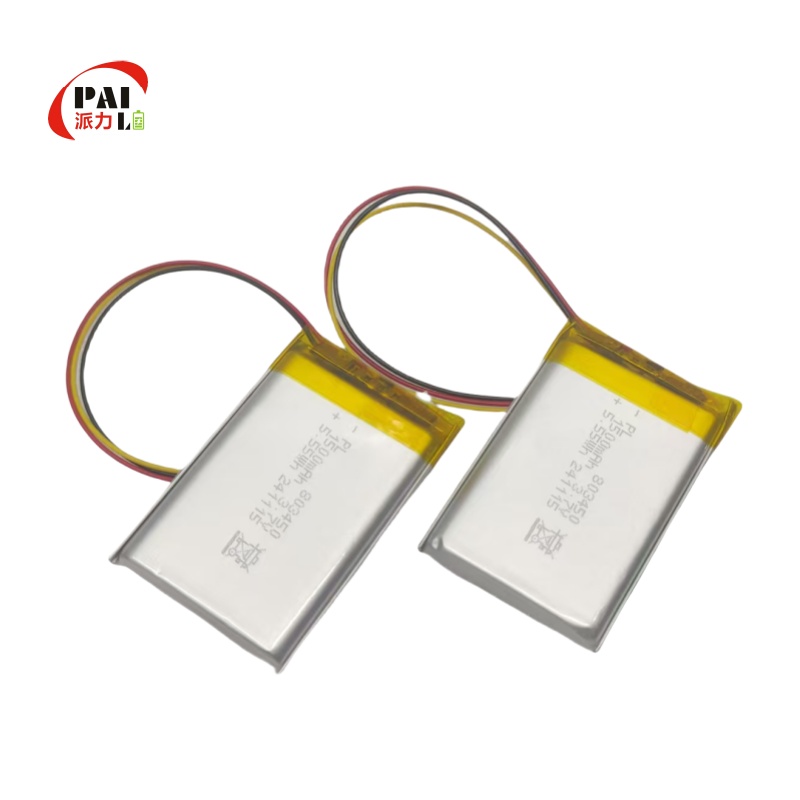

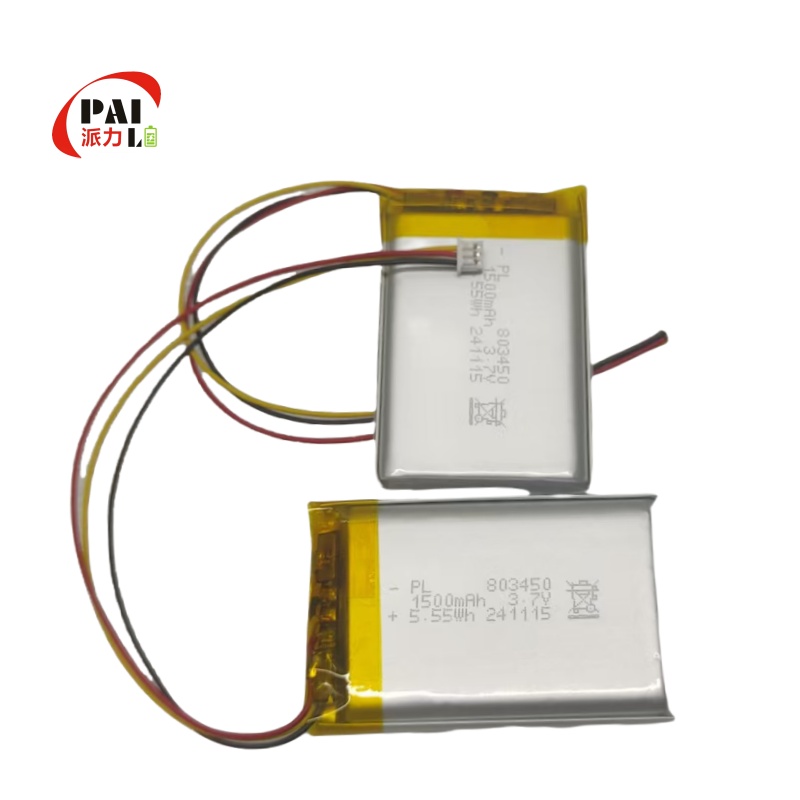

803450 3.7V 1500mAh Soft-pack polymer lithium battery

Product Number: PL 803450

Nominal Voltage: 3.7V

Nominal Capacity: 1500mAh

Product Size: MAX 8*34*50mm

Charging Temperature: 0--45℃

Discharge Temperature: -20--60℃

Storage Temperature:-15--45℃

Application Field: Digital electronics, consumer electronics, wearable devices


detail
Product Number PL 803450
Cell Model 803450
Battery Specification 803450 3.7V 1500mAh
Nominal Voltage 3.7V
Nominal Capacity 1500mAh
Charging Voltage 4.2V
Charging Current ≤1A
Discharge Current ≤2A
Instantaneous Discharge Current ≤5A
Discharge Cut-off Voltage 2.75V
Internal Resistance of Finished Product ≤50mΩ
Battery Weight 30g
Product Size MAX 8*34*50mm
Charging Temperature 0--45℃
Discharge Temperature -20--60℃
Storage Temperature -15--45℃
Battery Housing Steel Shell PVC protective film
Intelligent Lithium Battery Protection Over discharge, over charge, over current, over heat, short circuit, balance, communication
Application Field Digital electronics, consumer electronics, wearable devices
Product advantages
  • Different Size: Type and Capacity are selectable Easy matching-up
  • Quality Assurance: Paili apply A-class cell, with high capacity and low inner-resistance
  • Stable Performance: Long life of cycles, capacity kept 80% of rated, after 500 cycles of charing-and-discharging
  • Free Memory-Sideeffectiveness: Charging, discharing and using is applicable any where, any time
  • High Safety: Protective design applied via inner PCB. No fire or explosion even Short, Over-charging, Over-discharging, Shock, Vibration, Puncture, High-temperature occured
