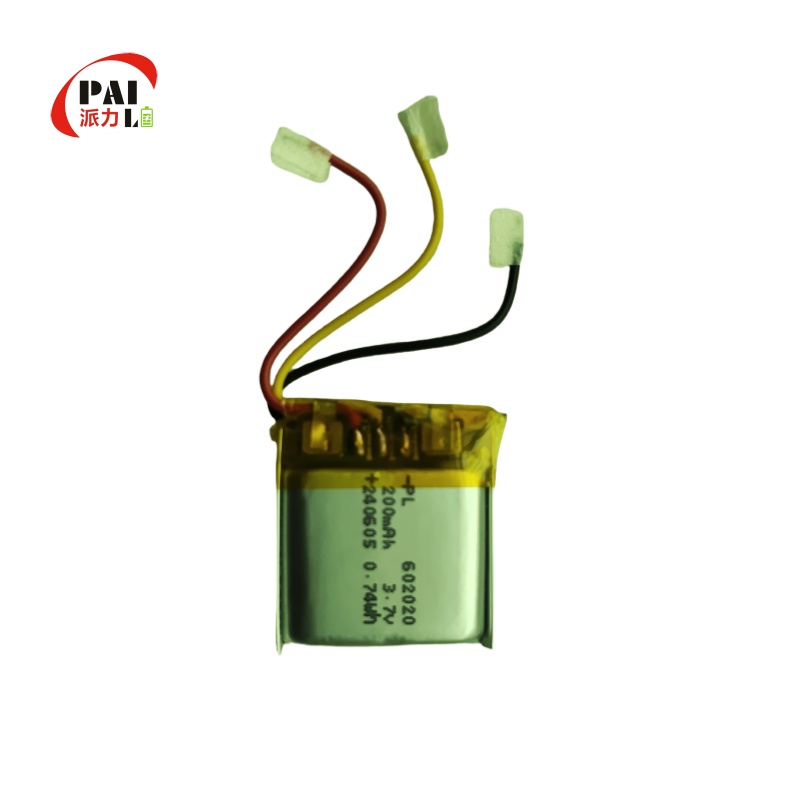

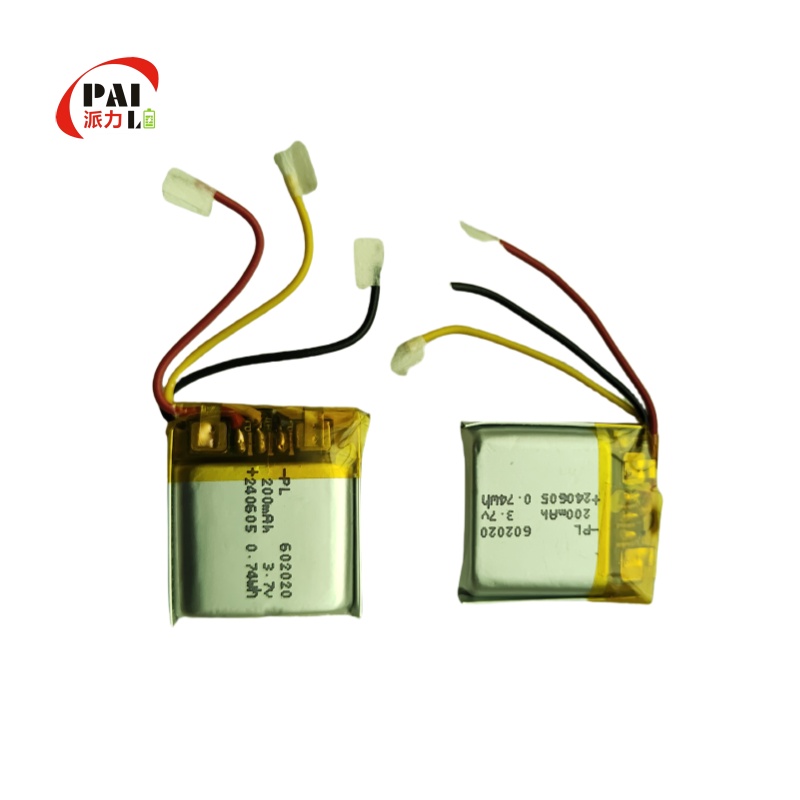

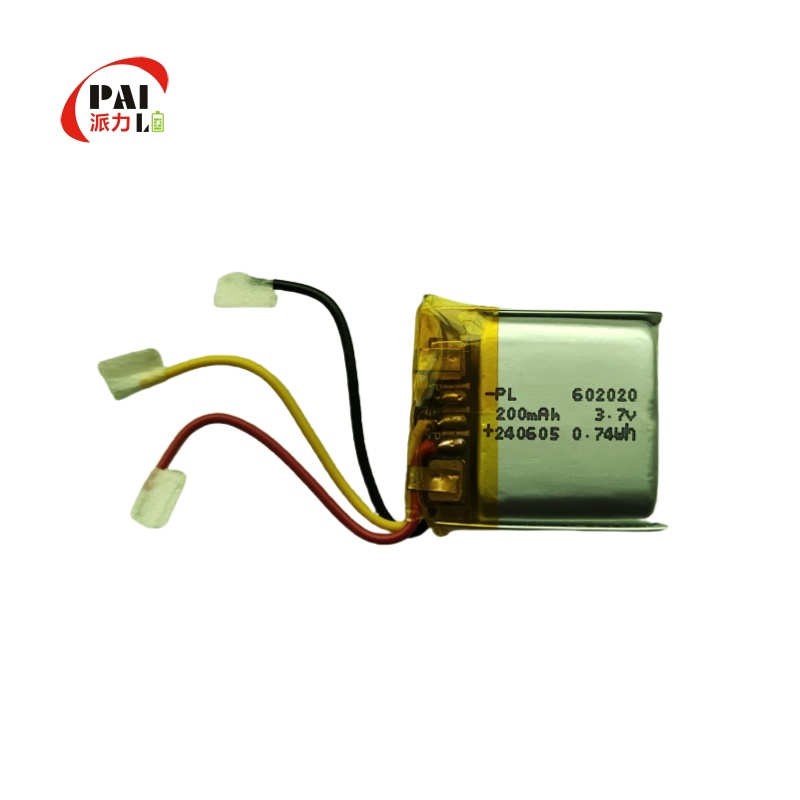

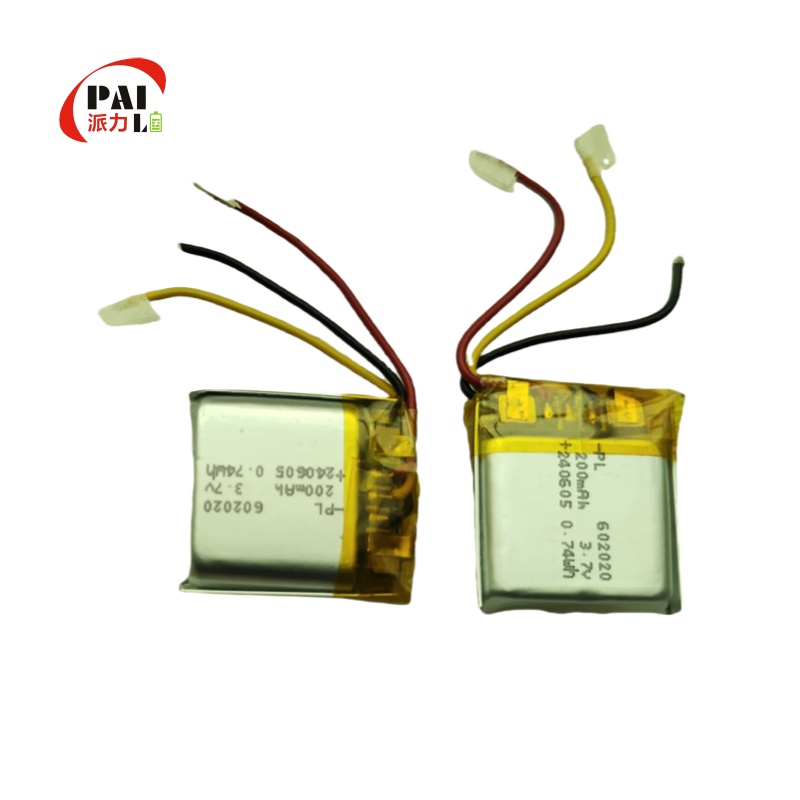

602020 3.7V 200MAh Soft pack polymer lithium battery

Product Number: PL 602020

Nominal Voltage: 3.7V

Nominal Capacity: 200mAh

Product Size: MAX 6*20*20mm

Charging Temperature: 0--45℃

Discharge Temperature: -20--60℃

Storage Temperature:-15--45℃

Application Field: Digital electronics, consumer electronics, wearable devices


detail
Product Number PL 602020
Cell Model 602020
Battery Specification 602020 3.7V 200MAh
Nominal Voltage 3.7V
Nominal Capacity 200mAh
Charging Voltage 4.2V
Charging Current ≤1A
Discharge Current ≤2A
Instantaneous Discharge Current ≤5A
Discharge Cut-off Voltage 2.75V
Internal Resistance of Finished Product ≤30mΩ
Battery Weight 15g
Product Size MAX 6*20*20mm
Charging Temperature 0--45℃
Discharge Temperature -20--60℃
Storage Temperature -15--45℃
Battery Housing Steel Shell PVC protective film
Intelligent Lithium Battery Protection Power management (RS485, CAN protocol), short circuit protection, overcharge protection, over discharge protection, over current protection, over temperature protection, etc.
Application Field Digital electronics, consumer electronics, wearable devices
Product advantages
  • Different Size: Type and Capacity are selectable Easy matching-up
  • Quality Assurance: Paili apply A-class cell, with high capacity and low inner-resistance
  • Stable Performance: Long life of cycles, capacity kept 80% of rated, after 500 cycles of charing-and-discharging
  • Free Memory-Sideeffectiveness: Charging, discharing and using is applicable any where, any time
  • High Safety: Protective design applied via inner PCB. No fire or explosion even Short, Over-charging, Over-discharging, Shock, Vibration, Puncture, High-temperature occured
