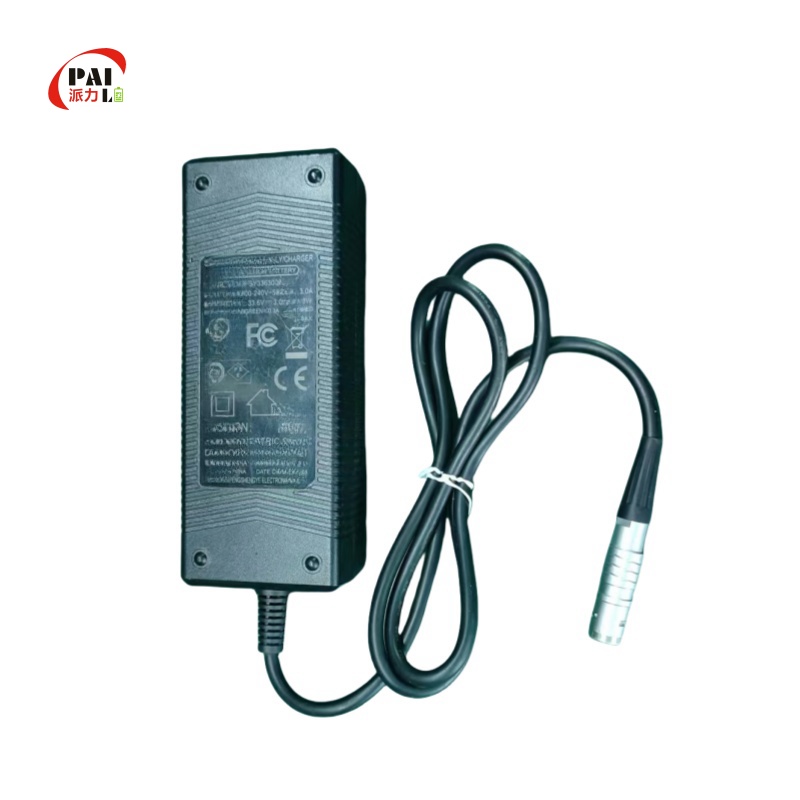

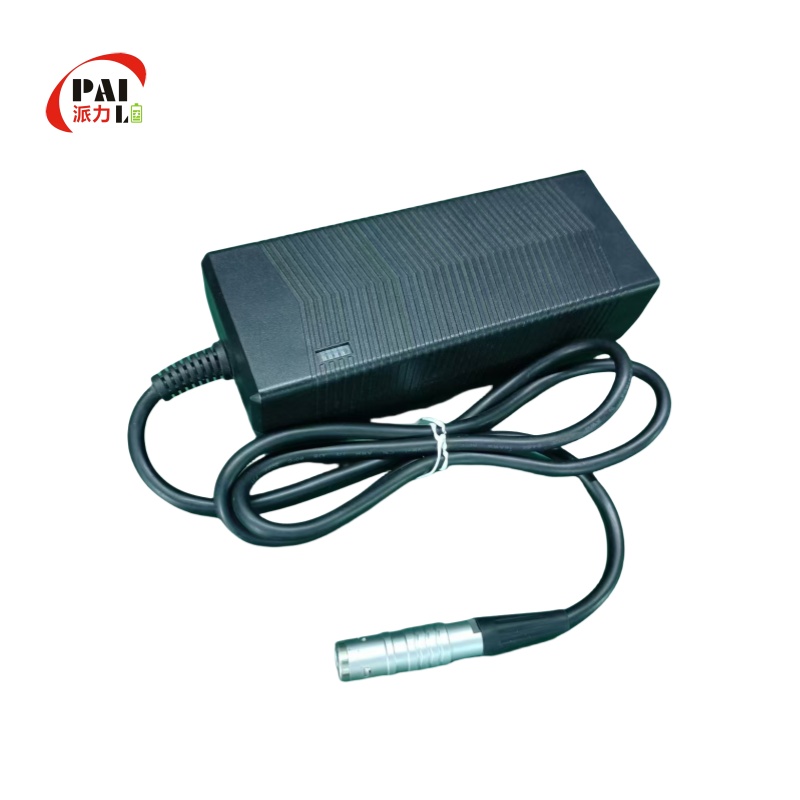

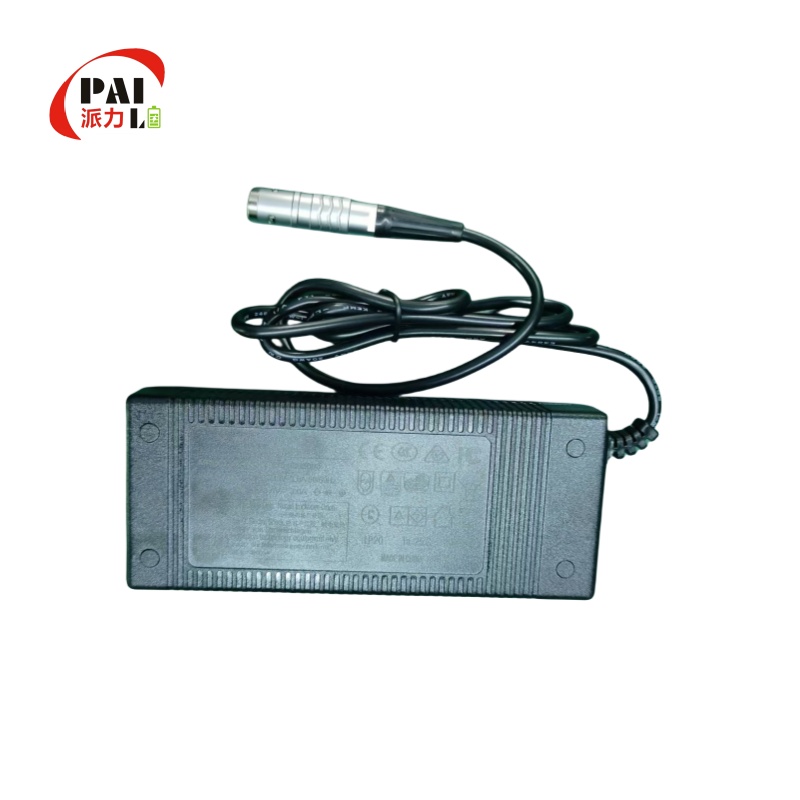

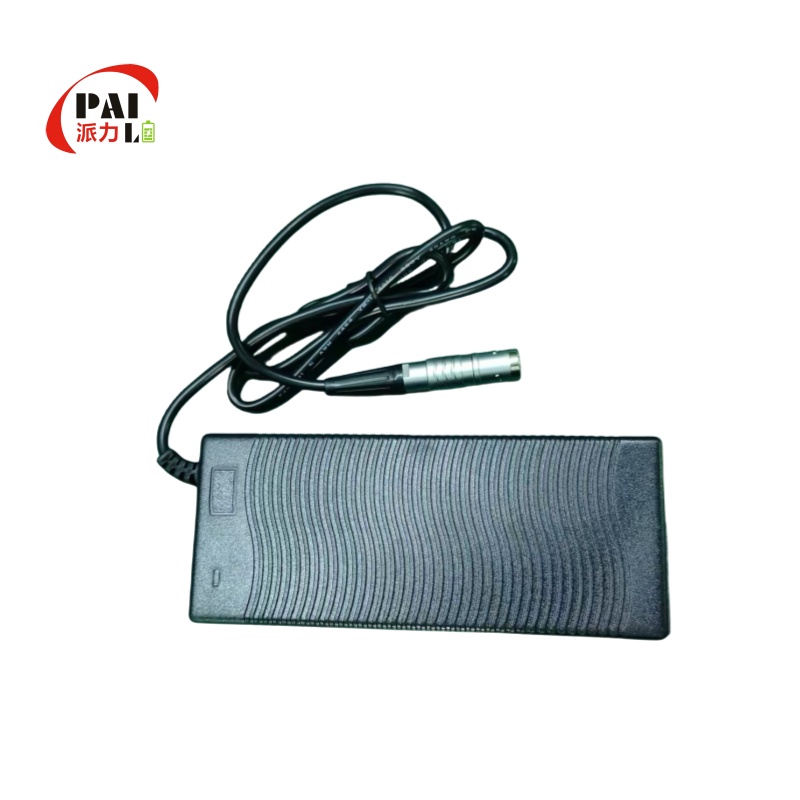

AC-DC 33.6V 3A 8S ternary lithium battery charger, smart lithium battery charger adapter

Product model: PL 3363000-B

Product application: Li-ion Battery Pack Charger Adapter, Smart Li-ion Battery Charger Adapter

Input voltage: Wide voltage 100-240Vac, 50-60Hz

Output voltage: 33.6V (Rechargeable with in 16-33.6V range)

Output current: 3A

Product dimensions: L145x W42.5x H36mm

Input interface:American, European and national standard 3-pin socket, equipped with a 1-meter power cord;

Output interface: Support customization


detail
Product Model: PL 3363000-B
Product Application: Li-ion Battery Pack Charger Adapter, Smart Li-ion Battery Charger Adapter
Input Voltage: Wide voltage 100-240Vac, 50-60Hz
Output Voltage: 33.6V (Rechargeable with in 16-33.6V range)
Output Current: 3A
Efficiency Requirement: >80%
Protection Requirement: Input overcurrent protection, output overvoltage, undervoltage, overcurrent, short circuit, overtemperature protection
Product Dimensions: L145x W42.5x H36mm
Input Interface: American, European and national standard 3-pin socket, equipped with a 1-meter power cord;
Output Interface: Support customization
Product Weight: About 1KG
Operating Temperature: -20~+45℃
Storage Temperature: -25~+85℃
Charging Status: Power indicator, charging status indicator (charging red light/full green light)
Heat Dissipation Method: Plastic shell, natural air cooling
Product Features: The charger has a built-in microprocessor, which can meet multiple charging modes such as pre-charging, constant current charging, constant voltage charging, and stop charging. It has the characteristics of stable charging, high efficiency, safety and reliability, and is suitable for lithium battery charging and maintenance.
Product advantages
  • Different Size: Type and Capacity are selectable Easy matching-up
  • Quality Assurance: Paili apply A-class cell, with high capacity and low inner-resistance
  • Stable Performance: Long life of cycles, capacity kept 80% of rated, after 500 cycles of charing-and-discharging
  • Free Memory-Sideeffectiveness: Charging, discharing and using is applicable any where, any time
  • High Safety: Protective design applied via inner PCB. No fire or explosion even Short, Over-charging, Over-discharging, Shock, Vibration, Puncture, High-temperature occured
