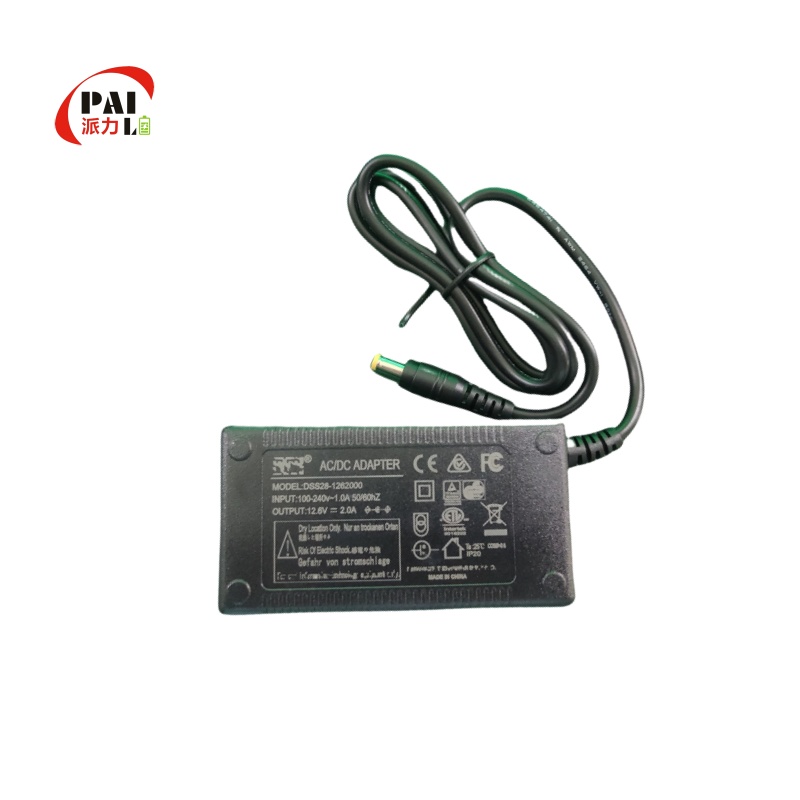

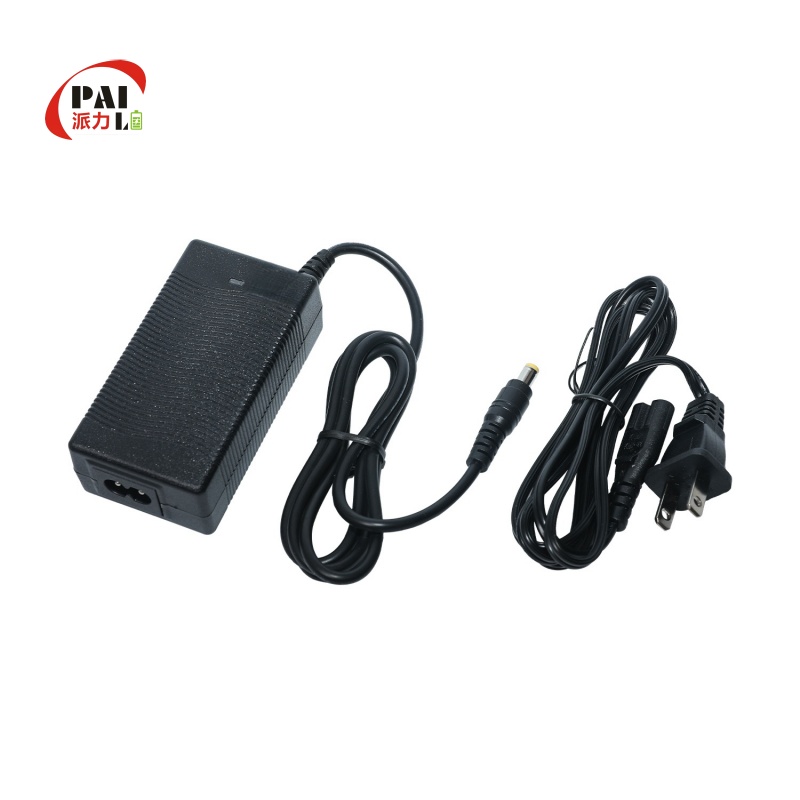

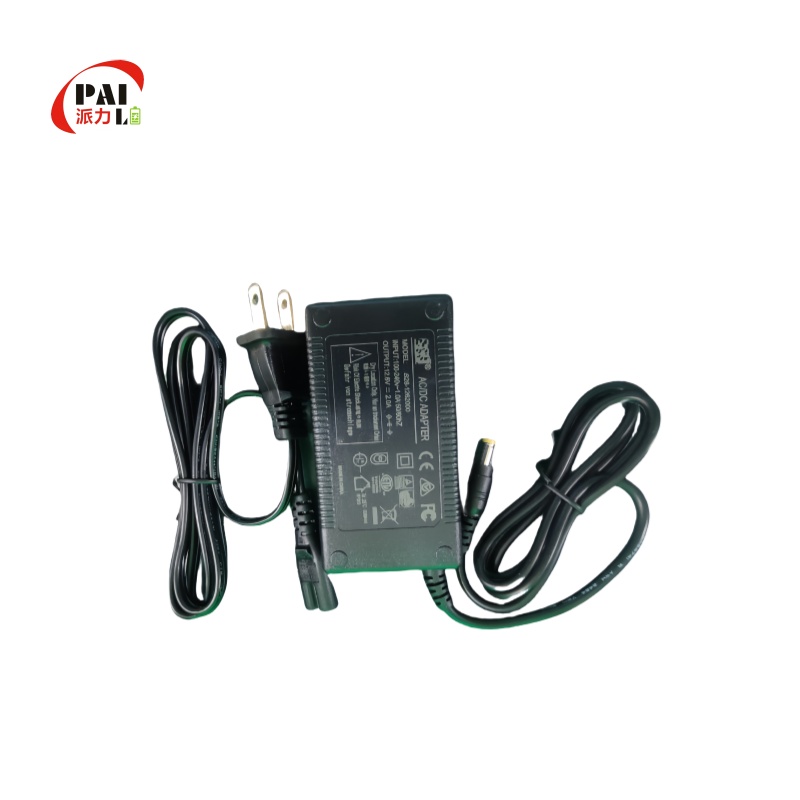

AC-DC 12.6V 2A 3S ternary lithium battery charger, intelligent lithium battery charger

Product model: PL 1262000-B

Product application: Suitable for charging 3 series of ternary lithium batteries

Input voltage: Wide voltage 100-240Vac, 50-60Hz

Output voltage: 12.6V (Rechargeable with in 7-12.6V range)

Output current: 2A

Product dimensions: L73x W42.5x H28mm

Input interface:American, European and national standard 3-pin socket, equipped with a 1-meter power cord;

Output interface: DC5.5*2.1*10mm plug, cable length 1.0m


detail
Product Model: PL 1262000-B
Product Application: Suitable for charging 3 series of ternary lithium batteries
Input Voltage: Wide voltage 100-240Vac, 50-60Hz
Output Voltage: 12.6V (Rechargeable with in 7-12.6V range)
Output Current: 2A
Efficiency Requirement: >85%
Protection Requirement: Input overcurrent protection, output overvoltage, undervoltage, overcurrent, short circuit, overtemperature protection
Product Dimensions: L73x W42.5x H28mm
Input Interface: American, European and national standard 3-pin socket, equipped with a 1-meter power cord;
Output Interface: DC5.5*2.1*10mm plug, cable length 1.0m
Product Weight: About 350g
Operating Temperature: -20~+40℃
Storage Temperature: -25~+85℃
Charging Status: Power indicator, charging status indicator (charging red light/full green light)
Heat Dissipation Method: Plastic shell, natural air cooling
Product Features: The charger has a built-in microprocessor, which can meet multiple charging modes such as pre-charging, constant current charging, constant voltage charging, and stop charging. It has the characteristics of stable charging, high efficiency, safety and reliability, and is suitable for lithium battery charging and maintenance.
Product advantages
  • Different Size: Type and Capacity are selectable Easy matching-up
  • Quality Assurance: Paili apply A-class cell, with high capacity and low inner-resistance
  • Stable Performance: Long life of cycles, capacity kept 80% of rated, after 500 cycles of charing-and-discharging
  • Free Memory-Sideeffectiveness: Charging, discharing and using is applicable any where, any time
  • High Safety: Protective design applied via inner PCB. No fire or explosion even Short, Over-charging, Over-discharging, Shock, Vibration, Puncture, High-temperature occured
