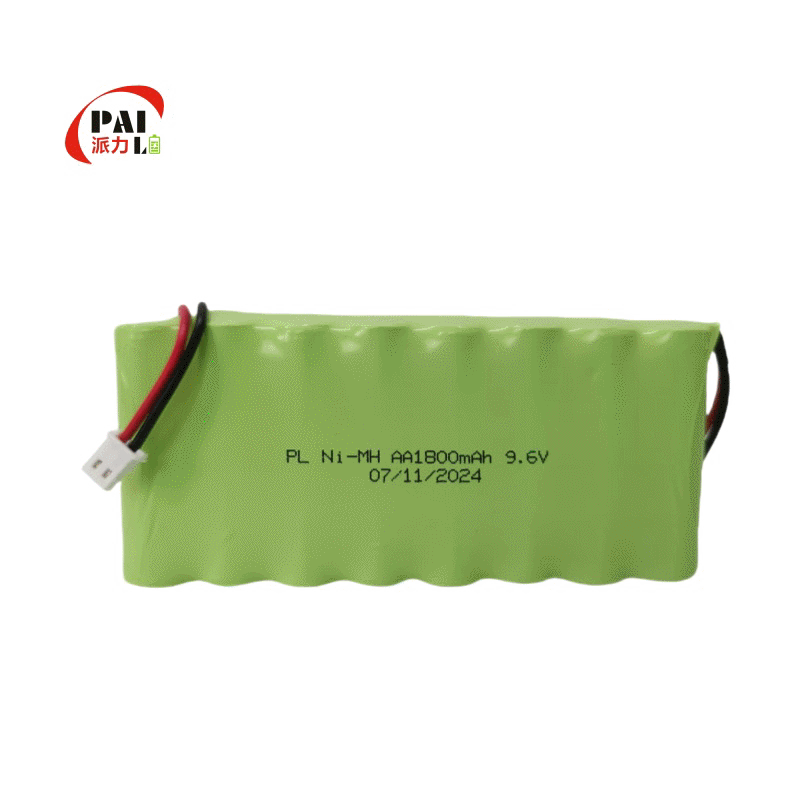

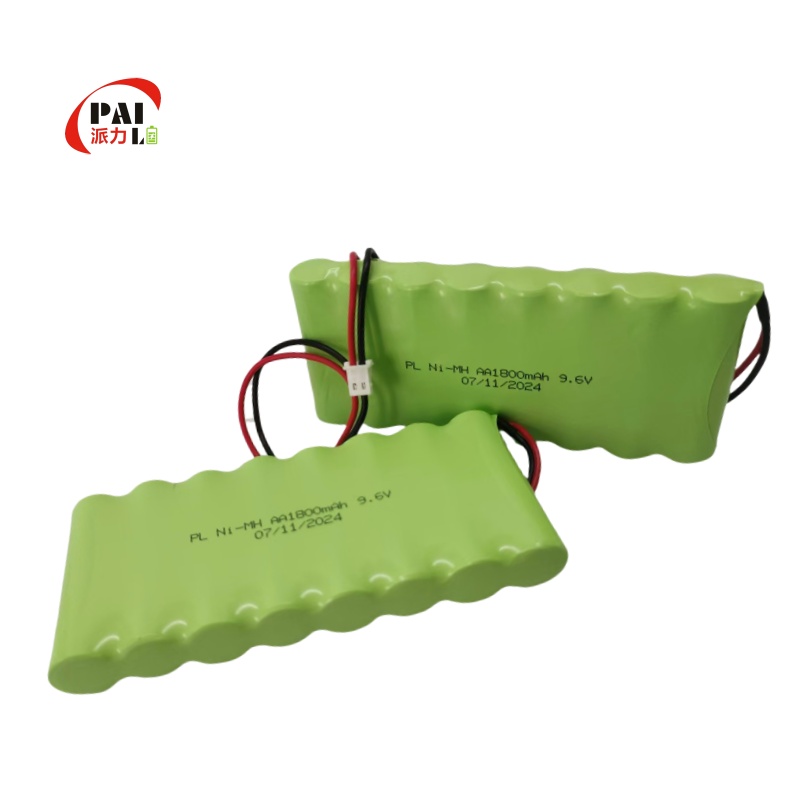

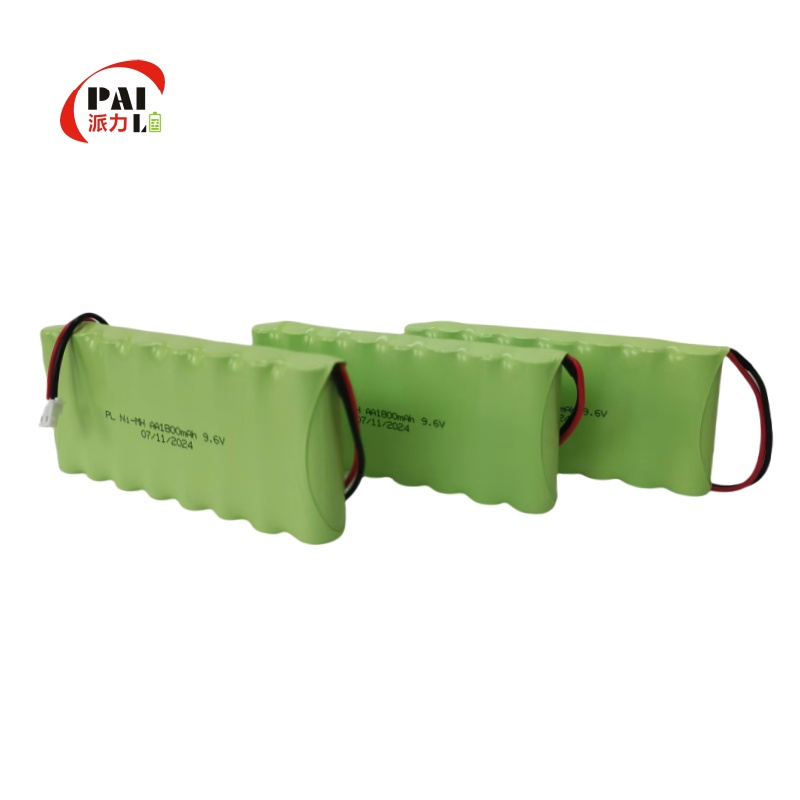

NiMH AA1.8Ah 9.6V lithium battery pack, emergency light lithium battery

Product Number: PL145008S

Nominal Voltage: 9.6V

Nominal Capacity: 1800mAh

Product Size: MAX 18*55*125mm

Charging Temperature: 0--45℃

Discharge Temperature: -20--60℃

Storage Temperature:-15--45℃

Application Field: emergency light lithium battery


detail
Product Number PL145008S
Cell Model 14500 AA1800mAh 1.2V
Battery Specification 14500 9.6v 1800mAh
Nominal Voltage 9.6V
Nominal Capacity 1800mAh
Charging Voltage 11.6V
Charging Current ≤1C
Discharge Current ≤1C
Instantaneous Discharge Current ≤2C
Discharge Cut-off Voltage 7.2V
Internal Resistance of Finished Product ≤160mΩ
Battery Weight ≤1kg
Product Size MAX 18*55*125mm
Charging Temperature 0--45℃
Discharge Temperature -20--60℃
Storage Temperature -15--45℃
Battery Housing PVC plastic material
Intelligent Lithium Battery Protection Over discharge, over charge, over current, over heat, short circuit, balance, communication
Application Field emergency light lithium battery
Product advantages
  • Different Size: Type and Capacity are selectable Easy matching-up
  • Quality Assurance: Paili apply A-class cell, with high capacity and low inner-resistance
  • Stable Performance: Long life of cycles, capacity kept 80% of rated, after 500 cycles of charing-and-discharging
  • Free Memory-Sideeffectiveness: Charging, discharing and using is applicable any where, any time
  • High Safety: Protective design applied via inner PCB. No fire or explosion even Short, Over-charging, Over-discharging, Shock, Vibration, Puncture, High-temperature occured
