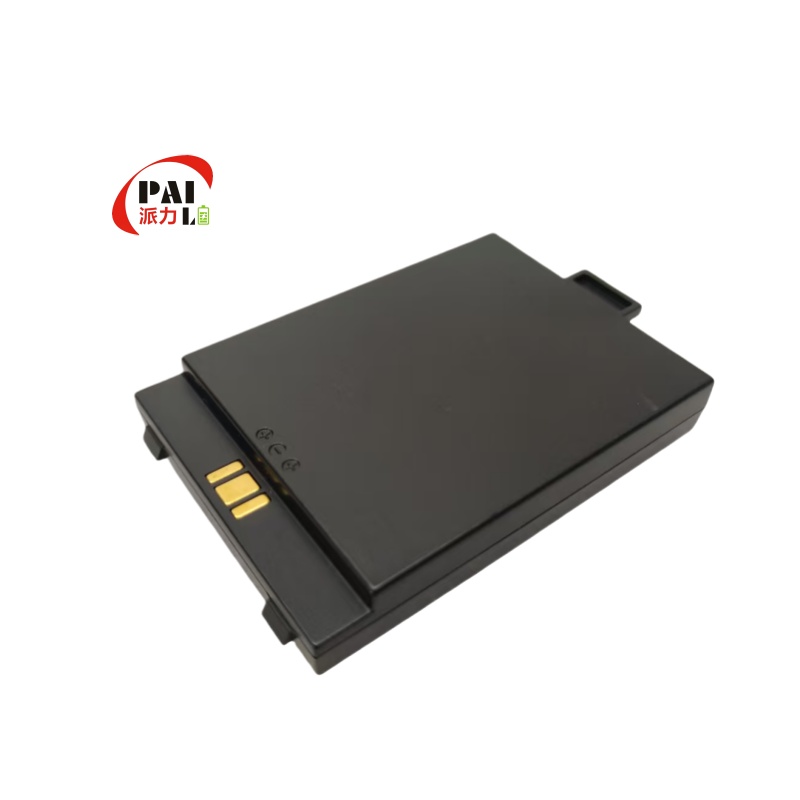

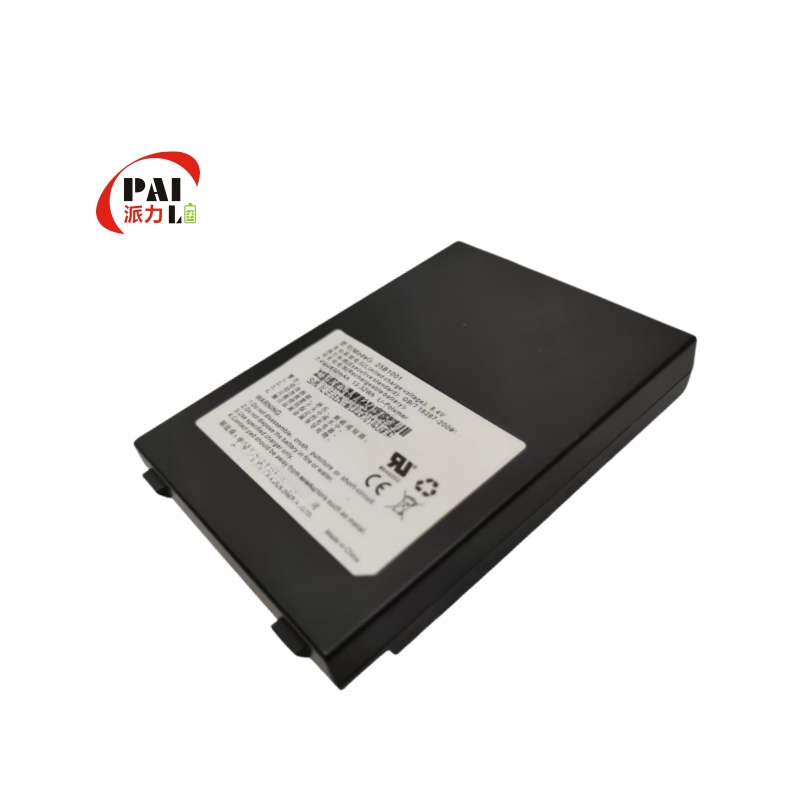

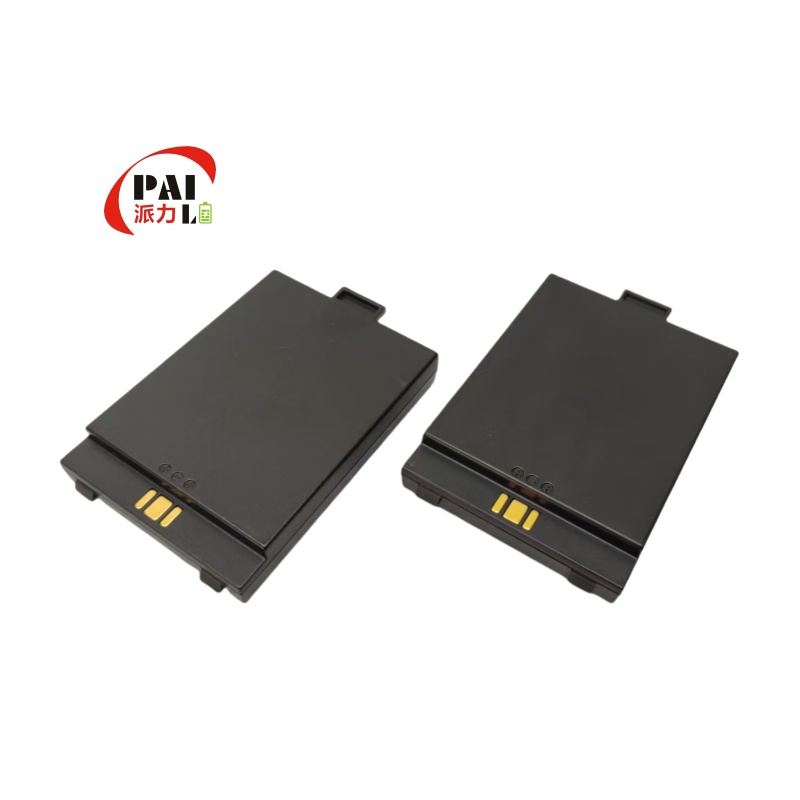

POS battery model:MW0-363-01EA For portable Pos terminal PAX S90

Product Number: PAX S90 MW0-363-01EA

Nominal Voltage: 7.4V

Nominal Capacity: 1800mAh

Product Size: MAX 15*57*87mm

Charging Temperature: 0~45℃

Discharge Temperature: -20~60℃

Storage Temperature:-20~45℃

Application Field: portable Pos terminal PAX S90


detail
Product Number PAX S90 MW0-363-01EA
Cell Model 25B1001
Battery Specification 7.4V 1800mAh
Nominal Voltage 7.4V
Nominal Capacity 1800mAh
Charging Voltage 8.4V
Charging Current ≤1C
Discharge Current ≤1C
Instantaneous Discharge Current ≤2C
Discharge Cut-off Voltage 5V
Internal Resistance of Finished Product ≤100mΩ
Battery Weight ≤ 82kg
Product Size MAX 15*57*87mm
Charging Temperature 0~45℃
Discharge Temperature -20~60℃
Storage Temperature -20~45℃
Battery Housing PVC plastic material
Intelligent Lithium Battery Protection Power management (RS485, CAN protocol), short circuit protection, overcharge protection, over discharge protection, over current protection, over temperature protection, etc.
Application Field portable Pos terminal PAX S90

Waterproof level: IP68


The battery pack is safe and stable, with large capacity and low power consumption;


It has a long cycle life and complies with the value concept of low carbon, energy saving and environmental protection;


It has good discharge performance under special occasions;


Product advantages
  • Different Size: Type and Capacity are selectable Easy matching-up
  • Quality Assurance: Paili apply A-class cell, with high capacity and low inner-resistance
  • Stable Performance: Long life of cycles, capacity kept 80% of rated, after 500 cycles of charing-and-discharging
  • Free Memory-Sideeffectiveness: Charging, discharing and using is applicable any where, any time
  • High Safety: Protective design applied via inner PCB. No fire or explosion even Short, Over-charging, Over-discharging, Shock, Vibration, Puncture, High-temperature occured
