详细说明
| 产品型号： | PL 1262000-B |  |
|

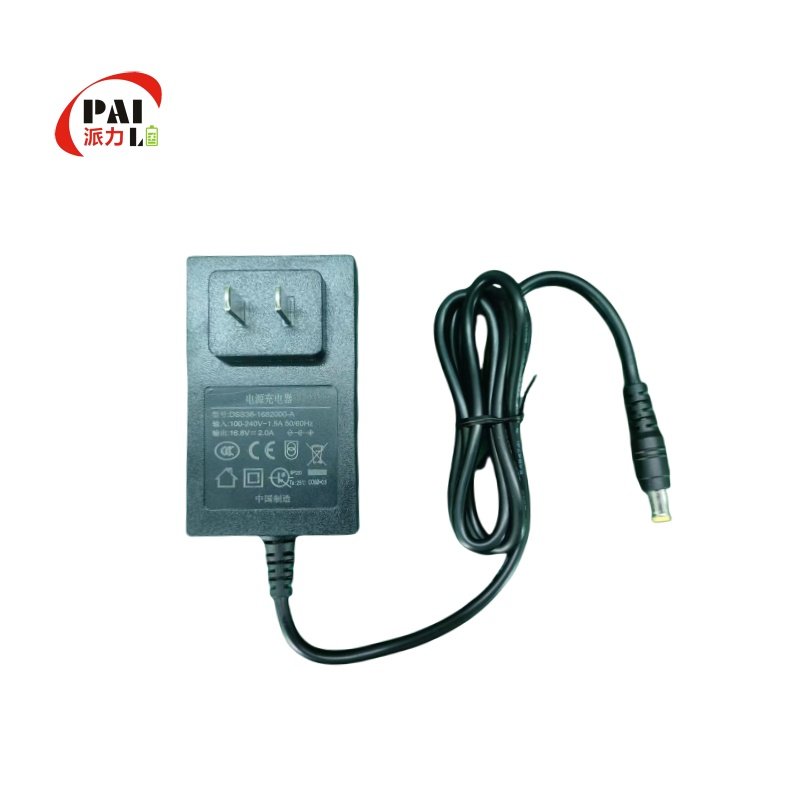

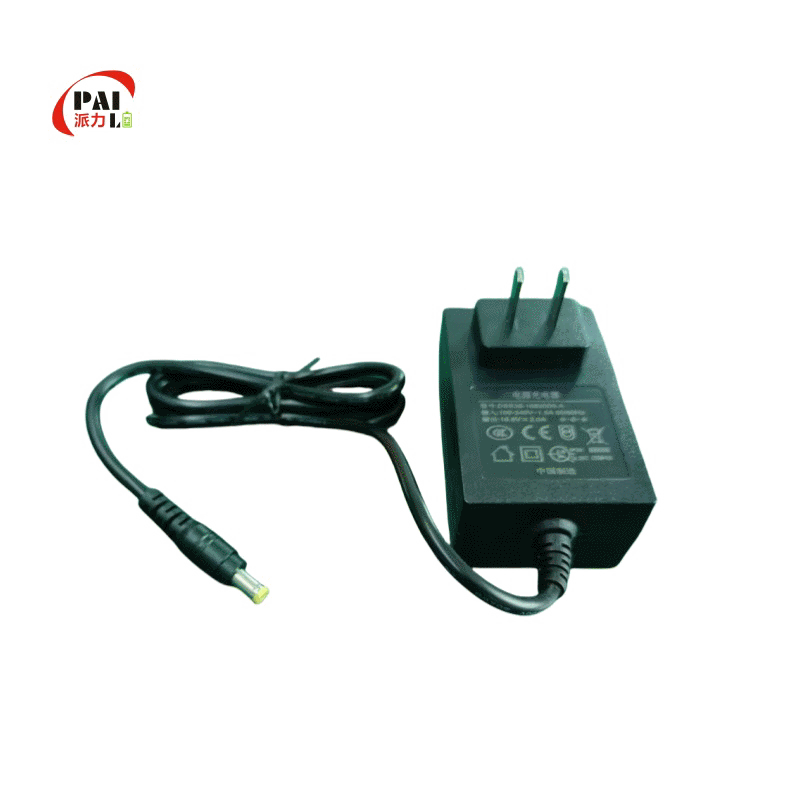

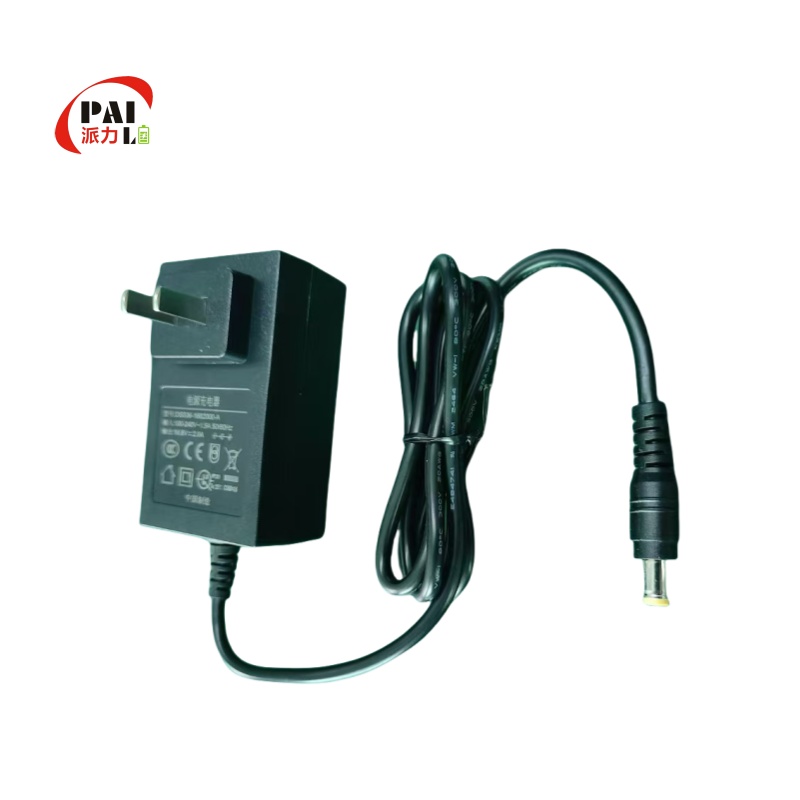

| 产品应用： | AC-DC 12.6V 2A Li-ion Battery Pack Charger Adapter, Smart Li-ion Battery Charger Adapter | ||
| 输入电压： | Wide voltage 100-240Vac, 50-60Hz | ||
| 输出电压： | 12.6V (Rechargeable with in 10.8-12.6V range) | ||
| 输出电流： | 2A | ||
| 效率要求： | ＞86％ | ||
| 保护要求： | Input overcurrent protection, output overvoltage, undervoltage, overcurrent, short circuit, overtemperature protection | ||
| 产品尺寸： | L73x W42.5x H28mm | ||
| 输入接口： | American, European and national standard 3-pin socket, equipped with a 1-meter power cord; | ||
| 输出接口： | DC5.5＊2.1＊10mm plug, cable length 1.0m | ||
| 产品重量： | About 350g | ||
| 工作温度： | -20~+45℃ | ||
| 储存温度： | -25~+85℃ | ||
| 充电状态： | Power indicator, charging status indicator (charging red light/full green light) | ||
| 散热方式： | Plastic shell, natural air cooling | ||
| 产品特点： | The charger has a built-in microprocessor, which can meet multiple charging modes such as pre-charging, constant current charging, constant voltage charging, and stop charging. It has the characteristics of stable charging, high efficiency, safety and reliability, and is suitable for lithium battery charging and maintenance. | ||
产品特点说明等等，这这里添加
产品优势
- 各种尺寸:型号和容量可供选择，适用性强
- 质量保证: 采用A品电芯，容量高，内阻低
- 性能稳定: 循环使用寿命长: 连续充放电500次后，电池容量不低于额定容量的80%。
- 无记忆效应: 可随时进行充、放电使用
- 安全性高:内置电路保护板，具有在短路、过充、过放、冲击、振动、针刺、高温等状态下不起火、不爆炸等特点。
